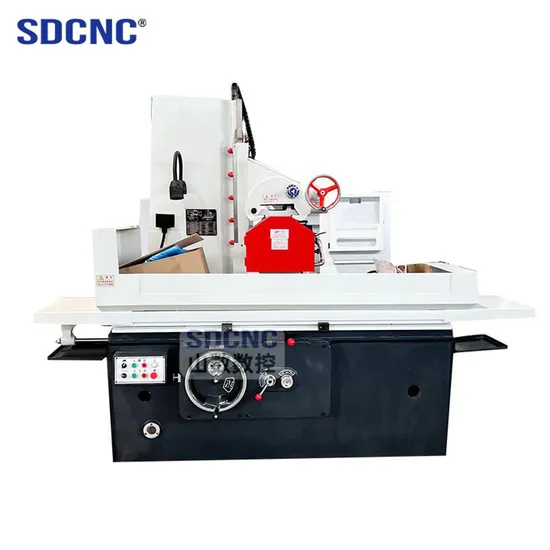

Sdcnc Surface Grinder Stroke Machine High Efficiency Brand New Surface Grinder Machine

Product Description

The main performance characteristics:The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.Grinding head vertical rapid lifting, improve production efficiency.The grinding head lateral movement driven by hydraulic motor, which can also be manually.The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.Application:Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters
Product main technical parameters:

Description		Units	M7140x1000
Size of work table(L x W x H)		mm	1000x400
Max. Longitudinal movement of worktable		mm	1100
Max. Distance from the spindle centerline to the worktable surface		mm	570
Max. Cross movement of grinding herd		mm	450
Max. Vertical movement of grinding head		mm	400
Vertical movement of the grinding head by hand wheel	Every lattice	mm	0.01
	Each turn	mm	1.00
Rapid lifting motor	Power	KW	0.37
	Speed	R/min	1440
Abrasive wheel dim (L x D x W)		mm	350x127x40
Speed of grinding wheel		r/min	1440
Total power of motor		KW	9
Power of spindle motor		KW	5.5
Power of oil pump motor		KW	3
Processing accuracy		mm	0.015/1000
Surface roughness		um	Ra:0.63
Package(L x W x H)		mm	2800x1750x2350
Net weight		Kg	4000

---
