Hot Product Plastic Mixing Machinery/Plastic Raw Material Mixing Machine/PVC Mixing Unit

Product Description

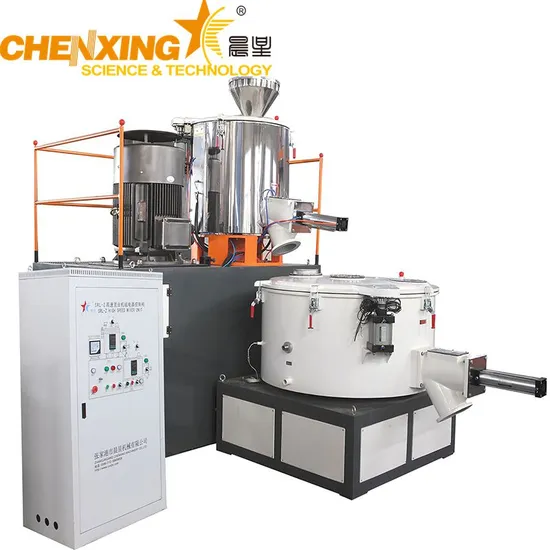

SRL-Z Vertical Mixing Unit Product Description
SRL-Z Series Mixer unit is mainly used for compounding, mixing, coloring dry of PVC, PP, PE etc. It can also be used for mixing resin. This machine integrate hot mixing&cold mixing into one. After the hot mixing, the materal will go into the cold mixer for exhausying the remained gas and preventing blocking.

Main Features
1. It is used in mixing drying coloring and other processing. It is ideal equipment for producing shaped plastic material and plastic pipes
2. The technology of the mainshaft sealing is given the state patent. The heating mixing has two functions: Electric heating and steam heating.
3. Two layers of sealing technology is adopt in the pot cover. The opening of the heating mixing cover adopts the air-opening device; The opening of cooling mixing cover adopts hydraulic pressure control system.
4. The electric control section adopts imported famous meters, control components and programmable logic control
5. It is equipped with the pulse dusting device
6. Matching simple feeding system

Product Parameters

Model	Total capacity	Effective capacity	Motor power	Spindle speed	Heating manner	Discharge manner
SRL-Z50/100	50/100	35/70	7/11/5.5	750/1500/180	Self-friction or electric heating	pneumatic
SRL-Z100/200	100/200	70/140	11/22/7.5	650/1300/150
SRL-Z200/500	200/500	140/250	30/42/11	550/110/90
SRL-Z300/600	300/600	210/420	40/55/11	475/950/90
SRL-Z500/1000	500/1000	350/700	47/67/15	430/860/60
SRL-Z800/1600	800/1600	560/110	60/90/22	370/740/50

Detailed Photos

More Products for Options

Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.
FAQ
Q: Are you factory or trading company?
A: We are a manufacturer professional in the plastic machinery industry over 20 years.
Q: How can you guarantee your quality?
A: We test each machine before delivery to ensure that it is in perfect condition.
Q: Do you have any after-sales service?
We offer 12 months warranty period. During this period, we can provide parts for free due to manufacture quality issues, human error is not included.

If any need, send message below without hesitation!

---
