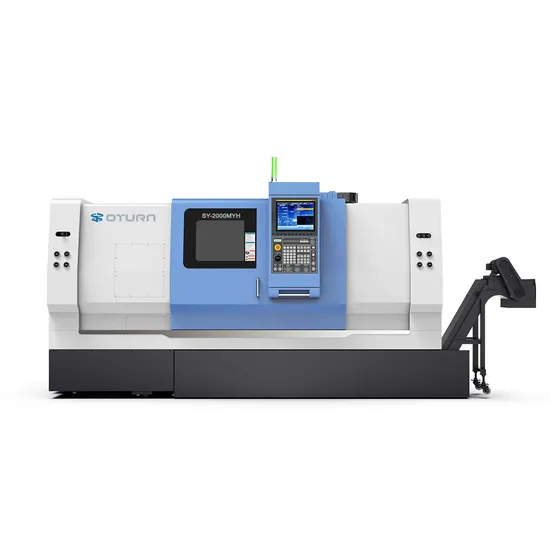

Oturncnc Advanced CNC Metal Lathe Machine for Metal

Product Description

Product Description
The Advanced CNC Metal Lathe Machine from Ningbo Oturn Machinery Co., Ltd boasts an innovative 30-degree inclined bed structure, ensuring exceptional precision, rigidity, and cutting stability. Constructed from high-strength HT300 cast iron, the one-piece bed features finite element analysis for superior mechanical rigidity and stability, maintaining long-term precision and enhancing processing stability and tool longevity. The stress relief treatment further augments precision stability. The machine's high-strength hard rail structure, coupled with a screw pre-tensioning designed transmission system, significantly enhances rigidity performance. Key Features of This Cutting-Edge Machine Tool: 1. The spindle unit is an independent sleeve type, rigorously tested for dynamic balance, offering high precision, excellent precision retention, minimal thermal deformation, and outstanding thermal stability. With a maximum speed of 2500rpm and a nose deflection accuracy within 0.003MM, the spindle incorporates a large-diameter, high-precision double-row roller bearing and a combined oblique contact ball bearing structure. The optimal span two-point balanced support design withstands radial and axial loads, making it suitable for both high-speed precision cutting and low-speed heavy cutting, ideal for mass production of complex, high-precision, and high-finish products. 2. The high rigidity servo power turret enhances rapid and precise tool changes. Coupled with high-speed power shaft milling capabilities, it delivers outstanding turning and milling performance. The tool holder features a high-rigidity BMT installation interface, driven by a servo spindle motor. 3. Equipped with hard rail guide rails and precision-ground ball screws, this machine ensures optimal precision and durability. Each axis adopts a direct transfer axis structure with a double anchor pre-relay method, minimizing thermal displacement and significantly improving machining accuracy. The machine excels in precision and durability, with each axis utilizing a direct transfer axis structure and double anchor pre-relay method to minimize thermal displacement, substantially enhancing machining accuracy. 4. Providing a comprehensive hydraulic and lubrication system, the machine utilizes high-quality hydraulic pumps and valves, reducing failure rates significantly. The design is simple yet reliable, featuring centralized quantitative automatic lubrication. 5. The hydraulic tailstock, with its high rigid structure, effectively eliminates vibration, ensuring superior stability. The sleeve's expansion and contraction are controlled by a hydraulic cylinder for convenience, speed, and reliability. 6. Featuring a Taiwan rotary chuck oil cylinder and an automatic chip removal device, this machine reduces operator labor intensity and facilitates safe, efficient production. All functionalities are programmable, including the special fixture.
Product Parameters

Name	Unit	SY2000MYH
Max.swing diameter over bed	mm	Φ800
Max.processing diameter	mm	Φ520
Max.swing diameter over cross slide	mm	Ф500
Max.processing length	mm	1940
Spindle nose	/	A2-11
Chuck	"	12
Spindle bore diameter	mm	Ф102
Bar diameter	mm	Ф88
Max. Spindle speed	rpm	2000
Spindle motor power	kw	26KW
Motor torque 248 pulley ratio; 1:2	Nm	496/706
X/Z/Y travel	mm	310/2000/120±60
X/Z Specification of shaft guide		Box way
X/Z Shaft motor torque	Nm	18.6
X/Z/Y motor power	KW	2.9/2.9/1.8
X/Z/Y axis moving fast	m/min	18/18/8
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Power turret	/	BMT65-12T
Power turret motor	Kw	5.0/7.5
Max.speed of power tool holder	rpm	5000
The specification of outer diameter tool holder	mm	25x25
The specification of inner diameter tool holder	mm	Ф50
The adjacent tool change time	sec	0.2
Programmable hydraulic tail seat		Hydraulic
The biggest stroke of the tail	mm	2130
Morse Slideway	type	Morse5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	80
Machine size	m	5450*2210*2100
Machine weight	kg	8000
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide your specifications, and we will recommend the best model for you. Alternatively, you can select an exact model yourself or send us the product drawings. We will ensure to choose the most suitable machine for you.
Q2: What are the main products of your company?
We specialize in a wide range of machinery including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and Turning and Milling Composite Processing machines.
Q3: Where is your factory located? How can I visit there?
Our factories are located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit us.
Q4: What are your transportation options?
We offer various transportation solutions including DDP, CIF, FOB, and FCA.
Q5: What are your Payment Terms?
We accept T/T with 30% initial payment upon order and 70% balance payment before shipment.
Q6: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set. (For some low-cost machines, the MOQ might be more than 1 set.)
We need to know:
1. We strongly suggest providing the size and material of your workpiece for our evaluation. If possible, send us the workpiece drawing so we can recommend the most suitable model.
2. If you need a CIF price, please kindly inform us of the port of destination.

---
