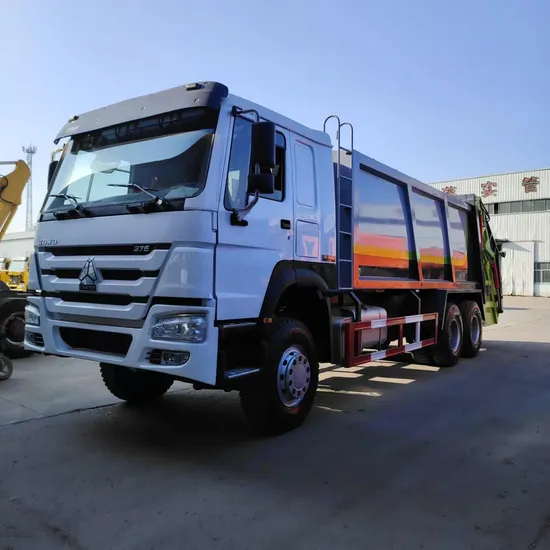

Second Hand 16cubic Meters Rear-Loading HOWO Shacman Compression Compaction New Garbage Truck

Product Description

Product Description
1. Introduction to Garbage trucks
Garbage trucks are used to collect, load and transport domestic garbage, and can compress and crush the loaded garbage to increase its density and reduce its volume, greatly improving the efficiency of garbage collection and transportation. New garbage trucks have the characteristics of reliable quality, low failure rate, easy maintenance and low operating costs.
2. Classification of Garbage trucks
The sanitation garbage trucks include swing arm garbage trucks, dump garbage trucks, bucket-type garbage trucks, compression garbage trucks, sealed garbage trucks, and compartment-unloadable garbage trucks. The chassis mainly include Dongfeng chassis, Jiefang chassis, Foton chassis, and Sinotruk chassis.
3. Garbage truck detailed description
A:Swing arm garbage truck: It is composed of chassis, garbage bin (bucket), swing arm deceleration buffer cylinder, etc. Its characteristic is that the garbage bin can be separated from the vehicle body, so that one vehicle can be used together with multiple garbage bins.
B:Bucket-type self-loading and unloading garbage truck: It adopts chain and hydraulic cylinder linkage device to realize semi-lifting and flipping of garbage, automatically collects garbage in multiple garbage bins into the car body, and can unload it by itself.
C:Compressed garbage truck: It adopts mechanical, electrical, hydraulic linkage control system, computer control and manual operation system, and realizes garbage dumping, crushing or flattening through fillers and shovels, and squeezes garbage into the car body and compacts and unloads it.
D:Carriage unloading garbage truck: It is widely used in urban streets and school garbage disposal. It can be equipped with multiple garbage bins a year. Multiple garbage bins are placed at each garbage point. It has self-unloading function, hydraulic operation, and convenient garbage unloading.
E:Sealed self-unloading garbage truck: It is widely used in urban street garbage disposal. It has sealed self-unloading function, hydraulic operation, and convenient garbage unloading. Detailed Photos
Product Parameters

L3000 4*2 Garbage Truck
Model	SX5185JSQ8J571
Driving Position	Left Hand Drive/Right Hand Drive
Engine	WP6.210E32
Emission Standard	Euro II
Transmission	8JS85TM+QD40J
Axle Ratio	11.5T Single-stage Axle 5.286
Frame (mm)	870×270 (7+4)
Wheelbase (mm)	5700
Front Axle	MAN 7.5T
Suspension	Front and rear multi-leaf springs
Fuel Tank	200L Iron Fuel Tank
Tire	10.00R20 6+1
Other configurations	electric air conditioning, electric window roller, LED daytime running lights, central locking (dual remote control), front fixed rear hydraulic suspension, 135Ah maintenance-free battery, vertical air filter, fixed pedal, flexible shaft control, spare tire rack, aluminum alloy air tank, hydraulic main seat, with third seat, manual flip, SHACMAN logo, full English logo, remote throttle controller shipped with the vehicle (only electronically controlled engine)

The compression garbage truck is composed of a sealed garbage compartment, a hydraulic system, and an operating system. The whole vehicle is fully sealed, and the sewage during the compression process enters the sewage compartment by itself. This thoroughly solves the problem of secondary pollution during garbage transportation. The key components are imported components, which have the advantages of high pressure, good sealing, convenient operation, and safety. The rear hanging bucket flip mechanism or garbage bucket flip mechanism can be optionally equipped. The outstanding features of compression garbage trucks and other garbage trucks:
1. Simple garbage collection method: It changes the dirty and messy old appearance of garbage bins placed all over the streets of the city and eliminates secondary pollution.
2. High compression ratio and large loading capacity: The maximum crushing pressure reaches 12 tons, and the loading capacity is equivalent to two and a half times that of non-compressed garbage of the same tonnage.
3. Operation automation: It adopts imported computer control system, and the driver is required to operate all filling and unloading operations, which not only reduces the labor intensity of sanitation workers, but also greatly improves the working environment.
4. Good economy: When the special equipment is working, the computer control system automatically controls the throttle.
5. Double insurance system: The operation system has the dual functions of computer control and manual operation, which greatly guarantees and improves the utilization rate of the vehicle.
6. Flipping mechanism: The flipping mechanism with garbage bin (or bucket) can be optionally configured.
Improvement plan for compression garbage trucks
1. High operating noise
Use materials that can absorb noise, and the structural design should be able to reduce vibration: Through the optimization design of the hydraulic system and loading mechanism, improve the processing accuracy and assembly quality to achieve the purpose of reducing the vehicle operating noise.
2. Poor sealing reliability
(1) Install an edge baffle between the filler flip filling bucket and the loader to prevent garbage leakage.
(2) The floor of the car should have a certain slope to prevent the leakage of garbage leachate.
(3) Install a sewage trough at the bottom of the filler to store sewage dripping between the car and the filler.
(4) Strengthen the seal at the connection between the loader and the car to prevent garbage leakage and garbage leachate dripping during the compression process.
3. Low load utilization
Use high-strength materials to reduce the weight of the upper body; auxiliary parts such as fenders, decorative parts, and covers can use low-density injection molding parts, and use components with a higher degree of integration to reduce space occupancy and weight, and at the same time help improve the working performance of the hydraulic system.
4. Operational comfort
Improving the comfort of driving operation can reduce the labor intensity of driving operators. In order to improve the handling performance, mechanical control is changed to electronic control and equipped with an electronic monitoring system.

Packaging & Shipping
Company Profile
Shandong Chengda Group is a group company integrating design, development, production and sales. lt has two entity companies, six trading companies, one 4S store and car rent and operate company.The two entity companies currently have 520 employees, including 120 senior and inter media technicians.
Shandong Chengda Group has more than 100national product patents and has the right to import and export.The six trading companies of Shandong Chengda Group have 8 sales teams with a total of more than130 people, mainly engaged in export trade.

Certifications
At present, the export market covers developing countries such as Africa, Southeast Asia, the Middle East, South America, and Central Asia, as well as developed countries in Europe and the United States.
Customers from various countries come to visit our factory and have reached a long-term cooperation with our company. Not only that, when the trucks are delivered to customers, our trucks work well and have a newly designed appearance, which has won unanimous praise from customers . Customer satisfaction is our long-term business purpose
FAQ

1.What are your terms of payment?
T/T with a 30% deposit and a 70% balance will be paid before delivery.
We will show you photos of the products and packages before you pay the balance.
2.What's your minimum quantity? 1 set.
3.What is your packing? Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ, or land transportation.
4.How about delivery time?Generally speaking, 25 workdays after we received 30% of the contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
5.How to judge the quality of products?We will show you photos and videos, trading order. You are welcome to visit our factory at any time.
6.Why do you trust and choose us? --Complete production line, from trailer Design to Delivery.
-- ISO 9001: 2008 and CCC quality certificate.
--Use 100% famous brand spare parts you want.
-- Accept customization requirements.
--We are trusted by clients from Africa, Australia, South America, Indonesia, and so on.
--We accept flexible payment terms, T/T, or other.
7.Can I customize the painting and the logo?Yes, we offer customized logos for any type.
