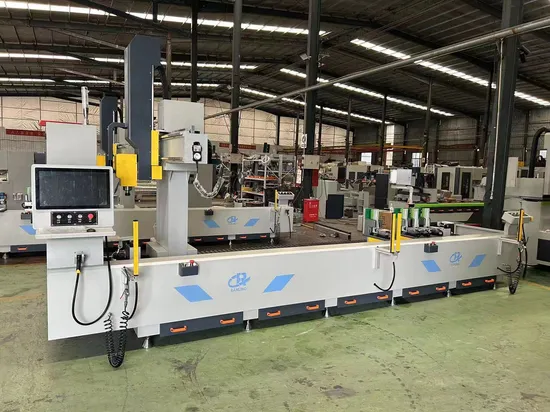

Window Machine Aluminium CNC Milling Machine Door Windows PVC Machine 4 Axis Machine Center Aluminum Profile Drilling and Milling Machine

Product Description

Product Description
Suitable for milling of various types of holes and grooves of aluminum door and window profiles, especially for door locks This The machine has the characteristics of high processing efficiency, high processing precision, stable and reliable performance, and easy operation. It is a must-have product for the automation of milling processing of various types of holes and slots of door and window profiles. The processing method of this machine can be divided into single-zone processing or double-zone processing, making the processing efficiency more efficient. Equipped with an automatic lubrication system, the lubrication time can be set by yourself, and no manual oiling operation is required. Equipped with an automatic tool setting instrument, enable this function, and automatically enter the tool length into the system Detailed Photos
This machine is equipped with a light curtain system. During the processing, the worker enters the dangerous area and
automatically pauses, which is safer. The use of CNC control system, intelligent CNC system and simple and intuitive human-machine interface make operation more convenient and quick
The X and Y axes are driven by gear racks, and the Z axis is driven by a screw The spindle can be arbitrarily switched between the three positions of -90°, 0°, and +90°, and the milling of three surfaces can be completed in one clamping The spindle rotation is achieved through a servo motor and a reducer to achieve precise positioning
Adopt high-precision linear guide pairs, ball screws, gear racks and imported servo motors to ensure smooth movement, with high
positioning and processing accuracy The servo motor drives the workbench to avoid collisions, which is more labor-saving and convenient
Product Specification

Power supply	380v 50Hz
Input power	15.5Kw
Working air pressure	0.5-0.8Mpa
Spindle speed	18000r/min
Spindle power	6kw
Processing size range	150x150x4000mm
Dimensions	6150x1700x2250mm

Company Profile
Founded in 2011, Ranling Intelligent Equipment Technology Co., Ltd is a manufacturer specializing in the research development and production of CNC Aluminum profile making machines for windows and doors curtain wall such as double saw machines, heavy-duty angle machines, hinge drilling machines etc. After years of development, Ranling has developed into a modern high-tech enterprise of laser cutting machine, including fiber laser cutting machines for metal sheet pipe and laser welding/cleaning/cutting machines.Our factory is located in Jinan city, Shandong Province of China. All the products are certificated by CE and comply with international quality standards and are greatly appreciated in a variety of different markets at home and at abroad. Packaging & Shipping

FAQ
1.Are you manufacturer?
Yes,we are the professional manufacturer with more than 16 years experience in this area.
2. What's the delivery time for the machines?
Normal machines our delivery time is 20 days after getting deposit, customized machines should confirm with our sales persons.
3. How about the after-sale service ?
1).reply it at once when machines break down, it reply it within 12 hour
2) if clients need , we can appoint engineers to help install the machines and train the workers
4.What's the guarantee time ?
1).All machines guarantee time is one year, not including wearing parts.
2) If machines parts broken, we will give for free, but clients should afford courier fees.
3).24 hours on line service each day, free technical support.
5. Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.Also support online training.
6. What is the payment terms ?
Any payment method you want,such as T/T, L/C and so on.

---
