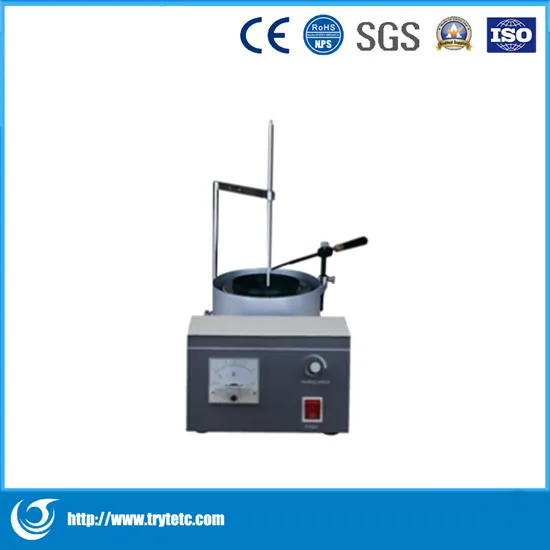

Open Cup Flash Point Tester-Flash Point Tester-Oil Testing Instrument

Product Description

Product Description :
It is suitable to determine the flash and fire point of lubricant oils and dark petroleum products
Main technical features:
1.The heating power is continuously adjustable. The power is displayed by an electric current meter. The temperature control is advanced and reasonable.
2.It adopts a tiny desktop structure. Easy to operate.
Specification
Main technical specifications:
1. Power supply: AC 220 V±10%, 50 Hz; 2. Outer crucible: (1) Material: 0.3 carbon steel, the surface is black. (2) Inner diameter of upper opening: Φ100±5 mm (3) Height: 50±5 mm (4) Inner diameter of bottom: Φ56±2 mm 3. Inner crucible: (1) Material: 0.3 carbon steel, the surface is black (2) Inner diameter of upper opening: Φ64±1 mm (3) Height: 47±1 mm (4) Inner diameter of bottom: 38±1 mm (5) Scale line: there are two scale lines at 12 mm and 18 mm from the upper opening. 4. Gas conduit: the diameter of spout is 0.8mm~1 mm, and the surface of inner hole is smooth, so it can adjust fire length to 3mm~4 mm. 5. Heater: It is heated by electric furnace. Heating power is 1000 W, adjustable. 6. Thermometer: 0ºC~360 ºC, scale division is 1 ºC. It is in accord with GB/T514 "Technical Requirement of Liquid Thermometer Used for Petroleum Products Test". 7. Ambient temperature: ≤35 ºC8. Relative humidity: ≤85% 9. Maximum power consumption: 1100 W
Packing List:

No.	Item	Unit	Qty	Remarks
1	Inner crucible	Piece	1
2	Outer crucible	Piece	1
3	Ignition device	Set	1
4	Thermometer(0~360ºC)	Piece	1
5	Thermometer clamp (bracket)	Set	1
6	5A fuse (Ф5 × 20)	Piece	2
7	Latex tubingΦ6	Meter	1.5	Connect the inlet port of the instrument
8	Gas pipe connecting head	Piece	1	Gas pipe and latex tube adapter

Packing:
