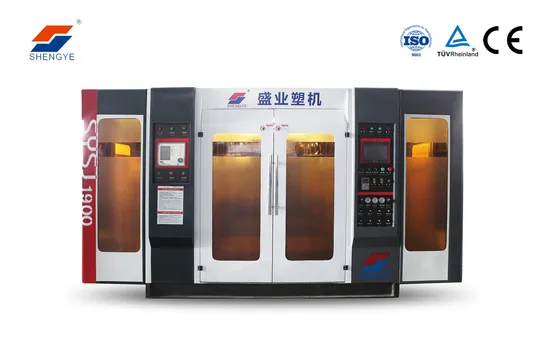

Servo Blow Molding Machine for PE Bottle

Product Description

Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.

Code	SYJII-SF-75-8
Max Product Volume	400ml
Output	2800pc/h
Machine Size	4100mm*4000mm*2250mm
Weight	8000KGS
Voltage&Frequency	Clients' Specified
screw Diameter	75mm
L/D Ratio	1:25
Die Head Qty	8pcs
Max Center Distance of Die Head	70/80
Extrusion Motor Power	30KW
Total Power	80KW
Average Energy Consumption	30kw
Extruder heating power	16kw
Number of hating zone	4
Oil pump drive power	/
Max plasticizing capacity	120kg/h
Platen Size	500mm*480mm
Max mould size	650mm*380mm
Clamping force	110KN
Opening Stroke	190mm-440mm
Moving Stroke	680mm
Cooling water pressure	0.3MPa
Water consumption	40L/min
Air pressure	0.6Mpa
Air consumption	2.5centiare/min

---
