Basic Info.
Maximum Cutting Plate Thickness
30mm
Cutting Material
Wooden Plastic Nylon Board
Saw Blade Reciprocating Speed
1300/Min
Power
1.1kw 220V 380V / 60Hz
Maximum Radius Gyration
1250mm
Maximum Thickness of Board
30mm
Usage
Making The Wooden Die Board
Transport Package
Wooden Case
Specification
1520*700*1400
Production Capacity
500PCS
Product Description

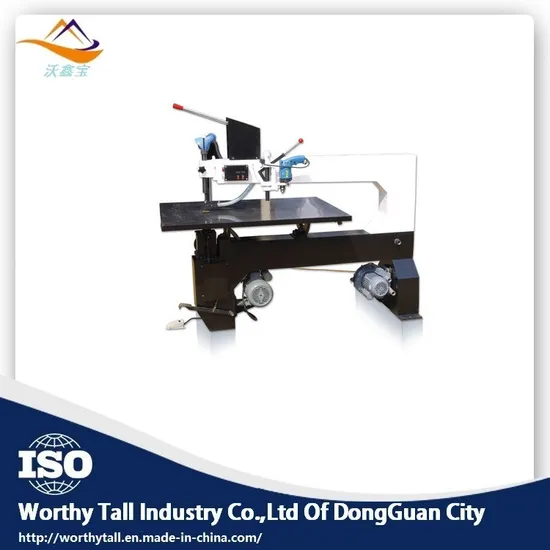

WT_J-1250B Die Board Cutting Machine
Note: 1,Handle 2,Switch 3,Up chucker 4,Presser foot 5,Workbench 6,Down chucker
7,Motor 8,Pedal 9,Electric box 10,Upper Bridge 11,Electric driller
12,Electric driller handle 13,Sleeve 14,Knob 15,Air pump 16,Dust bucket
WT_J1250B Function Introduction:
| Technical Parameters | Maximum cutting plate thickness(mm) |
| 30mm |
| Cutting material | Wooden board,Plastic board,Nylon board |
| Saw blade reciprocating speed | 1300/min |
| Saw blade stroke | 25mm |
| Weight | 170kg | volume | 1520*700*1400mm |
| Total power | 1.1kw 220V 380V / 60HZ |
| Type | J-1250B | J-1250C | J-1500C |
| Maximum radius gyration(mm) | 1250mm | 1250mm | 1500mm |
| Maximum thickness of board | 30mm |
For more Details pls check in Made in China Website:
http://worthytall.en.made-in-china.com
>>
