US$5,780.00-6,180.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
UV Flatbed Printer
Structure
Flat-Bed Cylinder Press
Color & Page
Multi-Colour Printing Press
Usage
Paper Printer, Label Printer, Card Printer, Cloths Printer, Glass, Metal, Crystal...
Automatic Grade
Automatic
Printing Interface
USB3.0
System Supported
Win7/ Win10
Print Type
Digital Printing
Print Dimension
900mmx600mm
Material
Glass, Ceramic, Wood, PVC, Metal, Marble, etc.
After Service
Video Online Service
Transport Package
Wooden Box
Specification
L1380 W2000 H900mm,
Production Capacity
1000sets/Month
Packaging & Delivery
Package Size
144.00cm * 220.00cm * 91.00cm
Package Gross Weight
350.000kg
Product Description

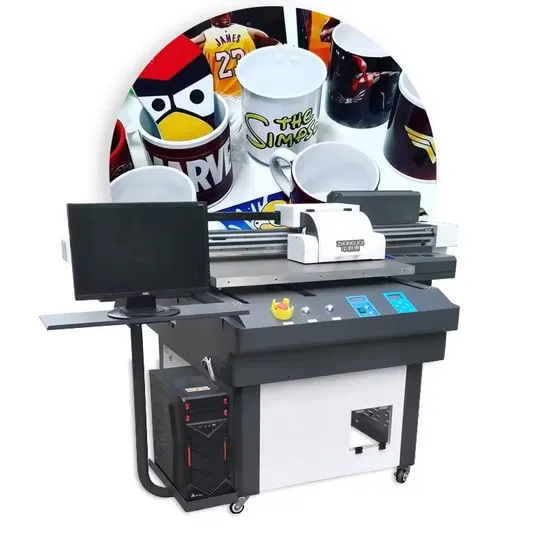

Product Description ZLQ UV Flatbed Printer suitable for printing on all flat materials, such as ceramic tile, glass, metal, leather, crystal, wood, ABS, acrylic, PVC, etc.
Digital inkjet printing, directly print on objects without plate-making, easy and simple.
Product Parameters
| Model No. | ZLQ UV9060 |
| Printhead | With Ep son heads (2 or 3 pcs) |
| Printhead Height |
Max 12cm |
| Media | Print Dimension | 900mm x 600mm |
| Type | Glass,Ceramic,Acrylic,Wood,PVC, Metal,Marble,etc. |
| Speed | High-quality mode: | 5m2/h, 3m2/h, |
| Midum-quality mode: | 7.5m2/h, 4.5m2/h, |
| Sketch mode: | 10m2/h, 7.5m2/h |
| Ink | Type | UV ink |
| Color | CMYK, LC, LM, W, Varnish |
| Print model | CMYK ; W+CMYK+V ; W+ double CMYK |
| Capacity | 500ml/bottle of each color |
| Supply System | Negative pressure continuous;With lack of ink alarm;White Ink Stirring. |
| Dry System | UV LED light system |
| Height adjustment | Automatic with sensor |
| Resolution | 1440, 2160, 2880 dpi |
| Rip Software | MainTop / PhotoPrint |
| PC Operation System | Windows 7/10 |
| Photo format | Bmp, Tiff , Jpg , Eps , Pdf , CAD |
| Power Supply | 110V/220V, 50/60Hz,800W |
| Size | L1380 W2000 H900mm, 270kg |
Thanks for your browsing. If you need to learn more about products,
please feel free to contact with us,or sent the inquiry below.
>>
