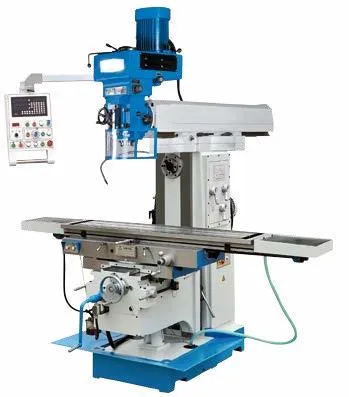

X6336A/X6336, Milling/Drilling Machine

Product Description

Product Description
X/Y/Z servo motor drive
Ball screw(optional)
Product Parameters

	specifications	Units	X6336A	X6336
	Table size(LXW)	mm	1650X360	1650X360
	Number/Width/Distance of T-slot	mm	3- 14-95	3- 14-95
	Max.table load	kg	300	300
	Table travel	mm	1300/320	1300/300/420
	Spindle taper		ISO40(V)/ISO40(H)	ISO40(V)/ISO50(H)
	Spindle speed	rpm	58-3000(V)/58- 1800(H)	58-3000/10 Steps(V)/ 58- 1800/12 Steps(H)
	Quill travel	mm	150	150
	Motor power	Kw	5.5(V/H)	3.7(V)/4.0(H)
	Servo motor	N/M	11.5	/
	Overall size	MM	2070X1930X2250	1890x1920x2330
	Net weight	Kg	2800	2200

Detailed Photos
