Cheap and High Quality Negative Twist Double Twisted Barbed Wire Machine

Product Description

Product Description

AnPing ShunWei Company keep the best professional design and manufacturing technology in this barbed wire machines with many years experience .We manufactures three model of barbed wire fence machine: CS-A is normal twisted barbed wire machine; CS-C is double reverse twist barbed wire machine; CS-B is single barbed wire making machine.

The barbed wire machine is divided into 1.Normal double twisted barbed wire machine CS-A) 2. Single wire barbed wire machine CS-B) 3. Double reverse twist barbed wire machine (CS-C)
Product Parameters

Barbed wire mesh machine parameters
	CS-A Type	CS-B Type	CS-C Type
Raw material	Galvanized steel wire, PVC coated wire,black wire etc.
Voltage	380v 50Hz or customized
Motor power	2.2/3kw	2.2/3kw	2.2/3kw
Barb wire diameter	1.6-2.8mm	1.6-2.8mm	1.6-2.8mm
Barb pitch	3/4/5/6inch	3/4/5/6inch	3/4/5/6inch
Strand wire diamter	1.6-3.0mm	2.0-3.0mm	1.6-2.8mm
Main drive shaft speed	402r/min	355r/min	355r/min
Twisted number	3-5	3	7
Production	20meters/minute	17meters/minute	17meters/minute

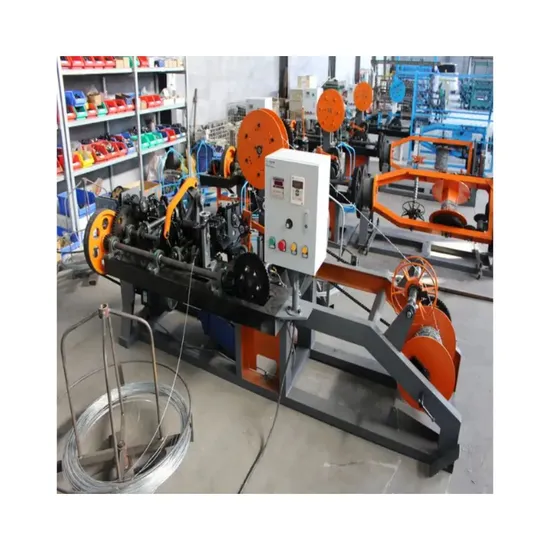

Detailed Photos




FAQ


Q: Are you a factory? A: Yes, We are factory specializing in the manufacture and export of machines for more than 20 years, all of the production we sale are at a very best price and high quality.
Q:What is your terms of payment? A: T/T 30% as deposit, and 70% balance against B/L copy.
Q: What's the guarantee time for your machines? A: 24 months warrantly, man-made destory will be exception. B: After the warrantee time, we can supply materials or teach support to you for reducing the cost of you.
Q: Can your company send your engineers to my country for machine installation, worker training? A: Yes, our engineers went more than 60 countries before. They are very experienced.
Q: Can you export and supply the customs clearance documents we need? A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.

---
