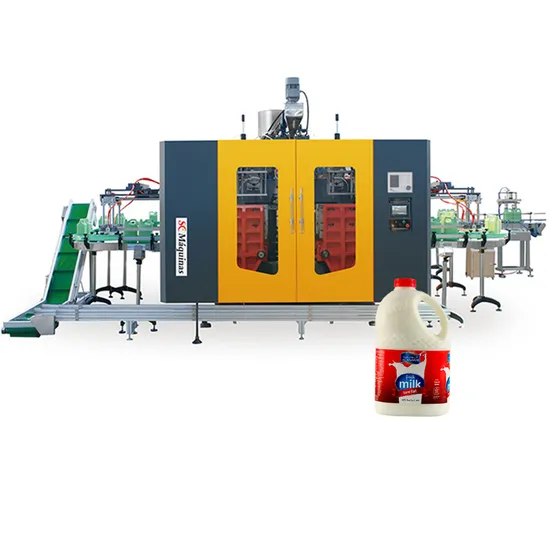

Cost Effective 2L 5L Milk Bottle Blowing Machine for HDPE PE PC ABS Bottles with 24 Hours Serivce and Life-Long Technical Support

Product Description

Product Description
Extrusion Blow Molding Machine
Maiwei extrusion blow moulding machine reasonable design, high output, run smoothly, high stability, power saving, easy operation, servo driving, full after sales, support competitive price
Suitable Bottle Size:20- 30000ml
Suitable Bottle Neck:18-38mm
Production Capacity:300-1,000BPH

Detailed Photos


Control System
Siemens human-machine operation interface, simple operation and high degree of automation. Intelligent regulation of energy usage to optimize energy consumption. Collect and record various data in the production process in real time, and through data analysis, help production managers optimize the production process, improve production efficiency, and perform fault diagnosis and prediction.
Electrical System
The electrical system includes a series of electrical components, sensors, actuators, controllers, etc., used to realize automation and precise control of the entire blow molding process. Maiwei stretch blow molding machines use imported electrical components such as Siemens , which have a long service life. Professional industrial fans are embedded in the electrical cabinet to ensure stable operation of electrical equipment in a variety of environments.
Extrusion System
The extrusion system of the stretch blow molding machine consists of a screw extruder, heating system, die head, pressure control system, cooling system, drive system, and automation control system. The inside of the die head is finely processed using a machining center imported from Japan, and the die head can move forward and backward. The storage tank type die head is made of high-quality materials and has a longer service life.
Diehead System
We can supply the die-mold,like the single layer die,Double-layer die,Outer layer center feeding double layer liquid level line die,Three die heads,Four die heads,Six die heads,Three-layer die,Four-layer die,Five-layer die,Six-layer die head.
Drum Mould1. Reasonable cold water runner design for heat transmission.
2. Cutting blade length& flatness for scraps easy removing.
3. Parison over-flow groove depth equal to product weight.
4. Suitable water inlet& outlet position for easy production.
5. precise cold shrinkage calculation to insure filling volume.
6. Multi-functional selection for mould action requirements.
Bottle Photos
Product Parameters

Model No	Unit	MW-2S1L	MW-S2L	MW-2S2L	MW-2S3L	MW-S5L	MW-S12L	MW-2S12L
Dry Cycle	pc/h	950x2	800	800	600x2	700	600	600x2
Screw Diameter	mm	50	50	60	70	60	80	90
Screw L/D Ration	L/D	25	25	25	25	25	25	25
Screw Motor Power	KW	11	11	15	22	15	30	37
Screw Heating capacity	KW	2.8x3	2.8x3	3.3x3	5x3	3.3x3	5.5x4	5.5x4
No.of Heating Zone	Zone	3	3	3	3	3	4	4
Output of HDPE	kg/hr	30-40	30-40	50-60	70-85	50-60	100-120	130-160
Oil Pump Drive Power	kw	5.5	7.5	7.5-11	11-15	75-11	11-15	16-22
Clamping Force	kn	20	38	38	80	68	110	110
Mold Stroke	mm	100-250	138-368	138-368	135-360	148-508	180-600	180-600
Size of Mold	mm	100X280	300X320	300X320	250x430	370x390	500x510	500x510
Moving Distance	mm	310	370	370	520	420	600	600
Max.Die Diameter	mm	35	90	90	90	160	220	220
Die Heat Capacity	kw	1.5-3	1.8-3.5	1.8-3.5	3.5-4.3	3.5-4.3	4.4-5.5	4.4-5.5
Blowing Pressure	Mpa	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Air Volume	Min	0.3	0.4	0.4	0.8	0.6	0.6	0.8
Cooling Water Pressure	Mpa	0.3	0.3	0.3	0.4	0.4	0.5	0.5
Water Consumption	L/min	40	35	50	60	55	60	70
Weight of Machine	Ton	2.5	2.78	4.5	4.8	4.8	7.8	11.2
Size of Machine (LXWXH)	M	2.5X1.6 X2	3X1.6X 2.1	3X1.6X2.1	3.5x2.1X 2.1	3.5x1.8x 2.1	3.3x3.3x 2.6	3.5x3.5x2.6

Packaging & Shipping

Packaging:
Stable wooden packaging protects the machine from impact and damage. A wrapped plastic film protects the machine from moisture and corrosion. This is a fumigation-free package that supports smooth customs clearance. Large machines are fixed in containers without packaging.
Shipping:
At LCL, we worked with a reliable logistics team to get the machine to the port quickly and safely. At FCL, we obtain containers, and our skilled workers carefully load the containers. As for forwarders, we have professional and long-term cooperation forwarders who can process your shipments smoothly. We also want to achieve seamless cooperation with forwarders at your convenience. Company Profile
Maiwei has been committed to the research of blow molding technology for many years. It has continuously accumulated experience in blow molding and improved product equipment to achieve more stable work, lower energy consumption and more durability. The product range includes: dairy products bottles, wine bottles, oil bottles, laundry detergent bottles, engine oil bottles, sprayers, hollow toys and other hollow plastic products.
We'll actually help you solve your packaging blow molding problems, not just sell equipment. The machine has a wide application range and can increase or decrease the air source system according to user requirements. It has strong flexibility, low energy consumption and high efficiency.
Certifications
FAQ
Q1:Are you a factory or trading company?
We are a company integrating industry and trade.
Q2: Where is your factory location?
Taizhou Huangyan Maiwei Machinery Co., Ltd. is located in Huangyan, Zhejiang Province, which is known as the "mold Kingdom and bottle blowing machine manufacturing base" on the coast of the East China Sea.
Q3: What's your main product?
We sell more than 20 types of automatic blow molding machines, semi-automatic blow molding machines, extrusion blow molding machines, and injection molding machines.
Q4:Can you provide more product information and specific prices?
Of course, you can contact us through any means displayed on the webpage, and our staff will send our company profile and product information for your reference. In addition, we will customize a detailed quotation according to your specific requirements.
Q5:How about quality control in your factory?
First, each mold/machine is well tested after production and before delivery.
Second, we always welcome customers to visit the factory to follow up the process.
Third, if customers cannot visit, we will also provide videos to help customers visit the factory and check the production situation.
Q6:What is the process of your OEM order?
We have a professional design and production team that will start from knowing all the details of the products you need, and then determine the best process and machinery to produce them according to your needs.
Q7: How long of your warranty?
About the warranty, usually we provide 1 year warranty,Any easily worn parts can be delivered within a week,and technicians can be sent to your factory to install machines. Our customer service is online 24 hours a day.

---
