Anti-Scratch High Glossy PMMA Acrylic Laminating Plastic Sheet Extrusion Production Line

Product Description

1220mm Width Anti-scratch High Glossy PMMA Laminating Plastic Sheet Extrusion Production Line
This line is specially used to produce high glossy PMMA acrylic sheet, decorative sheet, laminating sheet, which is as clear
as glass and has high impact resistance. It is also called plexi-glass sheet, acrylic sheets, PMMA sheet, Perspex sheet etc.
The sheets are featured as high glossy, supper matte finish, high hardness, anti-scratch, many different designs with pvc
decorative film laminating, widely laminated on MDF, plywood, particle board, such as cabinet door panel, wardrobe,
bathroom cabinet, wall panel, ecological door, office furniture, commercial space, house furniture decoration etc.
Sheet Specifications:
Thickness: 0.8mm, 1mm, 1.2mm, 1.3mm, 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm
Width range: 1220mm, 1250mm, 1300mm
Hardness: 2H, 4H, 6H
Surface finish: High glossy, super matter finish,
Length: 2440mm or customized
Color: Clear, blue, green, opal, brown, blue green etc.
Backside with PVC decorative films laminated, different patterns
Machine Specifications and Production Flows:

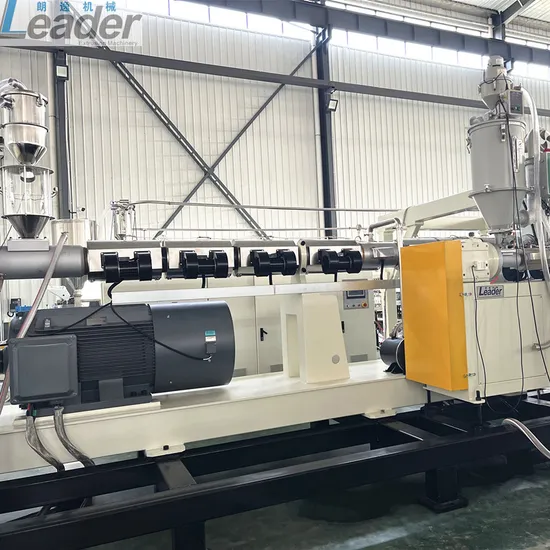

Dehumidifying and drying machine →Automatic vacuum feeding machine→Single screw extruder→Hydraulic screen exchanger→
Melting gear pump→T-type die head→Three-roller calendars →Rollers thermo-controlling machine→Protective film coating unit →
Cooling frame & edge cutting device→Haul-off machine→Saw cutting machine→Belts conveying table →Sheet stacker-Anti-scratch
UV coating line →PVC decorative film laminating line
Main Technical Parameters of this extrusion line:

Main extruder Dia.	120mm	130mm
Main screw L/D ratio	36:1	38:1
Main extruder drive	185kw	250kw
Co-extruder Dia.	45mm	45mm
Co-extruder L/D ratio	30:1	30:1
Co-extruder drive	22kw	22kw
Thickness of sheet	0.8-8mm	1.5-10mm
Width of sheet	1000-1560mm	1220-2100mm
Output	≥420kg/h	≥600kg/h
Power installed	380kw	520kw

Characteristics of PMMA sheets:
High transparency, high hardness, anti-scratch, anti-oil high glossy, super matte finish, aging resistance, high impact resistance,
sound and thermal insulation, UV resistance, heat resistance, fire resistance, light weight, color stability, easy transportation etc.
Main Applications of PMMA sheets:
Furniture use: such as cabinet door panel, wardrobe door panel, bathroom cabinet, wall panel, ecological door, office furniture,
commercial space.
Interior and exterior decoration(Suspended ceiling, sky light, windows, advertising board, bathroom, kitchen cabinet, aquariums,
telephone booth), light box, light guide panel (LGP), advertising lamp, instrument, highway insulation etc.
PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:
PART 6 COMPANY CERTIFICATIONS:
PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
PART 8 COMPANY OVERSEA SHOWS
OUR COOPERATED SUPPLIER LIST
PART 10 OUR TEAM :
PART 11 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.
5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.
7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008
10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.

---
