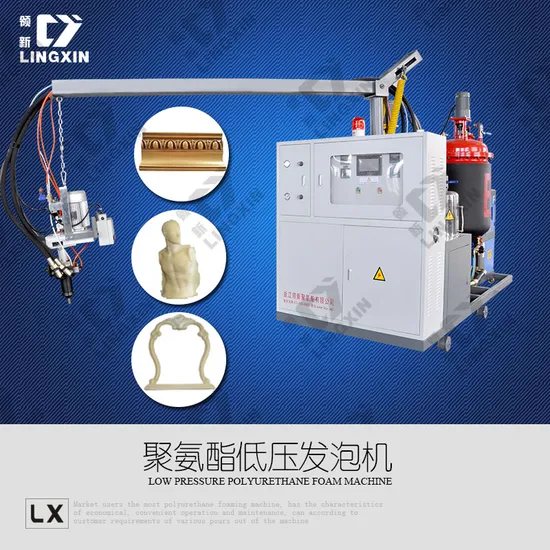

PU Machine/Polyurethane Machine/PU Foaming Machine/Polyurethane Foam Machine for Interior Decoration

Product Description

COMPANY INTRODUCTION VIDEO LINKE: https://youtu.be/ZbQmDYK5p-E
Equipment Overview:
PU foaming machines have wide application in the market, which have the features of economy and covenient operation and maintenance, etc.. The machines can be made according to customers' requirement for various flow rate.
Equipment Characteristics:
1.For sandwich type material tanks, it has good heat preservation.
2.The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation of machines easy to see.
3.The adoption of new type mixing head makes the mixing even, the noise low and the machine sturdy and durable.
4.The imported pumps make the measurement accurate.
Technical Parameter:

Injection Output:	0.9-1600g/s	Temperature control system:	heat:2×3Kw
Material tank volume:	30L-120L	Input power:	three-phase five-wire 380V 50HZ
Mixing ratio range:	100:50~150 for rigid foam making 100: 28~ 48 for flexible foam making	Rated power:	8KW-12KW
		Dimension	Micro-scale:1000(L)*1750(W)*1800(H)mm Normal:4100(L)*1250(W)*2300(H)mm
Mixing head:	2800-5000rpm, forced dynamic mixing	Color( customizable):	Cream-colored/orange/deep sea blue
Compressed air needed:	dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned)	Weight:	600Kg-1200Kg
Nitrogen requirement:	P:0.05MPa Q:600NL/min(customer-owned)	Raw material viscosity(22ºC):	POL ~3000CPS ISO ~1000MPas

---
