Professional Manufacturer Custom Auto Open Silicone Rubber Mixing Mill

Product Description

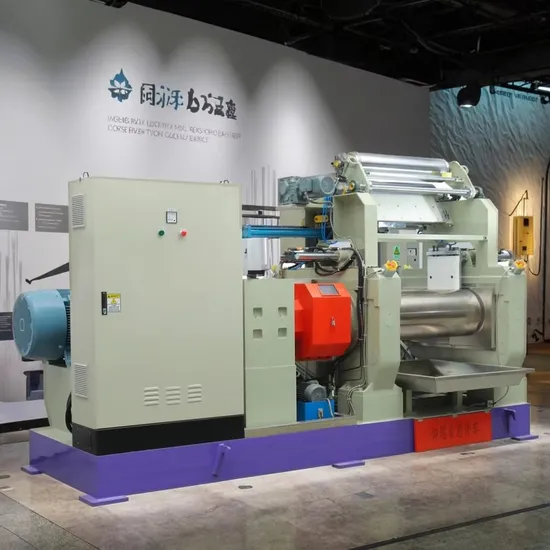

CF Open Mill -- 4inch / 6inch / 9inch / 12inch / 14inch
This experimental type open mixer mill is suitable for the mixing and dispersing of engineering plastics, pigment masterbatch, silicone rubber and other polymers; The double rollers are mirror-chromed with electric heating and water cooling, the surface temperature of the roller is uniform. The space between the two rollers is adjustable; Multi-directional Safety protection device make it safe and reliable, durable.

Model	CF-120 4inch	CF-160 6inch	CF-200 9inch	CF-300 12inch	CF-360 14inch
Power (KW)	3.7	5.5	7.5	30	37
Roller specification (mm)	120*320	160*350	210*600	300*700	360*900
Front roll line speed (r/min)	7.5	10	16.96	16.3	16.22
Maximum roll distance (mm)	0-5	0-5	0-10	0-10	10
Speed ratio (adjustable)	1:1.24	1:1.24	1:1.29	1:1.29	1:1.29
Overall weight (kg)	800	1000	1200	2500	6500
Length (mm)	1000	1100	1500	2745	3700
Width (mm)	560	550	1600	1275	1425
Height (mm)	1150	1200	2400	1657	1870

CF Open Mill -- 16inch / 18inch / 22inch / 24inch / 26inch
1. Mainly used for: natural rubber, synthetic rubber, silicone, EPDM, fluororubber, EVA, PVC, TPE and other materials for molding, tablet production and other processes.
2. Bearing seat: Made of high-quality steel precision casting and processed with high-precision CNC, it has strong load-bearing capacity and good seismic resistance.
3. Bearing lubrication: Adopting a forced circulation lubricating oil system toreduce manual maintenance.
4. Base: Made of high-quality steel plates welded together, with anintegrated structure and good seismic resistance.
5. Roller pitch adjustment: can be customized according to customerrequirements, electric adjustment or oil pressure adjustment.
6. Rubber flipping: Can be customized according to customer. requirements, with an automatic glue flipping system to reduce manual labor intensity.
7. Operation: The equipment is easy to operate and easy to maintain.
8. Safety: Install emergency stop buttons in front and back for quick shutdown.

Model	CF-400 16inch	CF-450 18inch	CF-550 22inch	CF-560 24inch	CF-660 26inch
Power (KW)	45	55	90	110	250
Roller specification (mm)	400*1010	450*1200	550*1530	610*1830	660*2130
Front roll line speed (r/min)	18.78	21.1	23.4	25.8	29.8
Maximum roll distance (mm)	10	12	15	15	15
Speed ratio (adjustable)	1:1.27	1:1.27	1:1.29	1:1.29	1:1.29
Overall weight (kg)	8000	10000	22000	22500	32000
Length (mm)	4000	4550	5630	6100	6240
Width (mm)	1500	1660	1946	2050	3350
Height (mm)	1870	2015	2200	2200	2670
