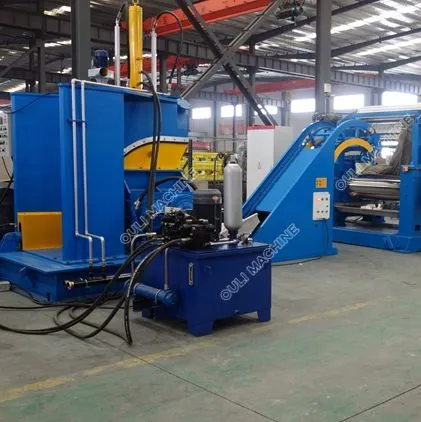

40% Higher Efficiency Rubber Compound Mixing Machine / Dispersion Internal Rubber Mixer Kneader

Product Description

1L banbury kneader machine ,small Dispersion rubber kneader for lab ,Laboratory rubber kneader machine
1.WE HAVE BELOW MODLES FOR YOUR CHOOSE
1).1L3L/5L/10L Rubber Kneader machine 2).20L Rubber Kneader machine
3).35L Rubber Kneader machine
4).55L Rubber Kneader machine
5).75L Rubber Kneader machine
6).110L Rubber Kneader machine
This Rubber Dispersion Kneader machinery is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.
Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.
2. PARAMETERS OF 1L banbury kneader machine ,small Dispersion rubber kneader for lab ,Laboratory rubber kneader machine

Parameter/model	X(S)N-3	X(S)N-20	X(S)N-35	X(S)N-55	X(S)N-75	X(S)N-110
Total volume (L)	8	45	80	125	175	250
Working volume (L)	3	20	35	55	75	110
Motor power (KW)	7.5	37	55	75	110	185
Tilting motor power (KW)	0.55	1.5	2.2	2.2	4.0	7.5
Tilting angle (°)	140	140	140	140	140	140
Rotor speed (r/min)	32/25	32/26.5	32/24.5	32/26	32/26	30/24.5
Pressure of compressed air (MPa)	0.7-0.9	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Capacity of compressed air (m3/min)	≥0.3	≥0.7	≥0.9	≥1.0	≥1.3	≥1.6
Pressure of cooling water (MPa)	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Weight (kg)	1038	4437	6500	7850	10230	14200

3. CONFIGURATION China 1L banbury kneader machine ,small Dispersion rubber kneader for lab ,Laboratory rubber kneader machine
Mixing chamber:
It consists of a "W" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.
Thermal Resistance:
There is a plug-in thermal resistance in middle section of the bottom of the chamber to be connected to electrical system to inspect and display the temperate.
Rotor:
It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.
Cooling/heating system:
A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top ram.
Tilting mechanism:
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc...It is able to actuate the mixing chamber tilting by 140° Around the front rotors.
Dust sealing device:
At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.
The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.
Main driving system:
The part is made up with main motor, reducer, connecting gears. It realizes odd-speed rotation of the rotors with running face one other.
Pneumatic control system:
Pneumatic control system is controlled by XG order. The bi-directional air cylinder makes the ram up or down. In case the over load occurs in the mixing chamber, the top ram can be raised automatically or manually if necessary, so as to protect motor from overload.
Electric control system:
Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.
4. RELATED PRODUCTS China1L banbury kneader machine ,small Dispersion rubber kneader for lab ,Laboratory rubber kneader machine
5. OULI CUSTOMERS
6 RUBBER KNEADER MACHINERY customers feedback
7. RUBBER KNEADER MACHINERY PACKAGE AND DELIVERY 8. RUBBER KNEADER MACHINERY CERTIFICATION
9. FAQ

Q1:Why choose Us?
1.More than 20 years history of OULI MACHINE factory.
6-8 years foreign sales experience staff, more efficiency and professional.
Engineers oversea service more than 20 countries .
2.ISO:9001,CE,BV certification approval
3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.
4.Short delivery date, No delay. Accept urgent order for prompt shipment.
Q2:What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.
Accept urgent order for prompt shipment.
Q3:What's the warranty statement?
OULI MACHINE warrants all the products manufactured by OULI MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, OULI MACHINE warranty covers ONLY the product itself.
OULI MACHINE will assume no liability for labor costs, installation costs, or other losses.
Your warranty rights will be honored
Only when the product has been installed and used properly as deemed by OULI MACHINE,OULIMACHINE will not repair products damaged by improper use or faulty installation.
Q4:What about OULI oversea service ?
OULI will arrange oversea setting up and training works if customer need .
Customer should pay for accommodation , tickets and salary .
Meanwhile OULI has branches in different areas like north America , Southeast Asia , Brazil etc , etc . QINGDAO OULI MACHINE CO.,LTD,RUBBER MACHINE MANUFACTURER SINCE 1997 .
