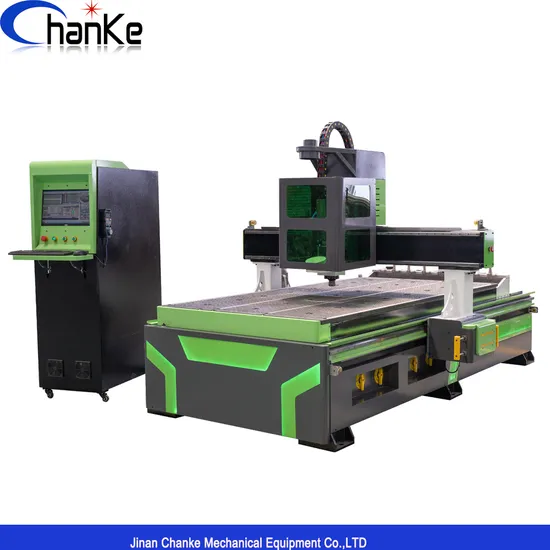

2024 3D Wood Metal Acrylic Carving Engraving Cutting Woodworking Milling CNC Router Atc Engraver Machine for Furniture Cabine Plywood Carving Machinery

Product Description

1. Tiwan 4 axis SYNTEC 11MA.
2. With 9.0 HQD air cooling spindle
3. Hiwin 25 square guide rails.
4. 11kw Telta inverter
5. Tool sensor
6. Servo motor with reduction mobile and Z axis contracting brake.
7. Vacuum and T-slot work table combine with 5.5kw vacuum pump
8. And it adopts a more advance XYZ Auto-oil-feeding system.
9. Heavy duty type machine bed and gantry for stable working.

10. 8 pacs of tools atc liner
Machine parameters

Model	chanke-1325 ATC cnc router
X, Y Working size	1300*2500mm
Z feed Height	200mm
Table Surface	Vacuum table with 8 pacs of tools changer
X, Y Structure	Rack and Pinion, Taiwan 25 Linear Square Guide Rail
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	35000mm/min
Max. Working Speed	25000mm/min
Spindle Power	9 KW HQD air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Inovance servo motor
Working Voltage:	AC 380V /50/60Hz
Command Language	G code
Control System	SYNTEC 11MA
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

Bellow is the other type of machine :
1.1300x2500mm with 3.5kw water cooling spindle /air cooling spindle
2.Leadshine stepper motor with leadshine driver DMA860H
3. Fuling /BEST brand inveter
4. NC studio control system
5. vacuum working table or T solt working table as your choice
6, Dust collector
7.Hiwin Rail liner
Machine parameters can decide by customer : like
spindle power can be choose : 4.5kw/5.5kw/7.5kw
Motor brand aslo can be choose .
This is one type of wood cnc router , as we know cnc router has many type , it decided by customer's work.

1 head 8 spindles wood cnc router for engraving work
we have many type of wood cnc router like cylinder engraving machine 2 head with 4 spindles . and machine with swing head with rotarty and ATC liner machine cnc .
Guarantee & service of Machine:
2 -3 years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the
warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,
and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is
ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who
could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive
there to debug and fix.
5) Could be remote control if needed.
