4ft Pneumatic Air-operated Plywood Core Veneer Glue Spreader Coating Machine

Product Details

Product Description

Product Description
Product Description

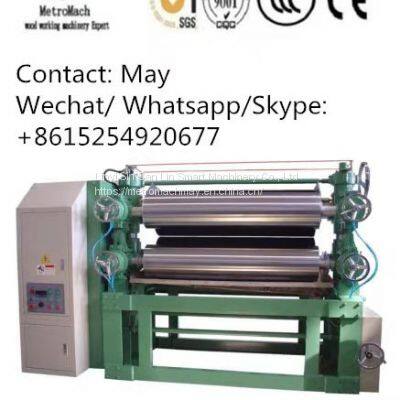

4FT Pneumatic Woodworking Plywood Core Veneer Glue Spreader Machine
1. Main features:
1. Adopt the big diameter and high precision thick rollers: high rigidity, glue uniform.
2. Separately designed gears transmission box: Low noisy, work stable, long working life.
3. Start device specical designed for the rollers lifting and fasten: Safety, fast and convenient.
4. Roller speed and veneer out-put conveyor speed can be adjusted separately to meet different working requirements.
5. Emergency stop device to prevent any accidents.
2.Technical parameters:

Glue Spreader Machine	4 feet	8 feet
Max Spreading Width	1400mm	2600mm
Diameter of rubber	410 mm (Nitrile rubber roller with grooves)	410 mm (Nitrile rubber roller with grooves)
Diameter of steel roller	275mm (with stainless steel plate)	310mm (with stainless steel plate)
Number of roller	4 pcs	4 pcs
Motor power	3.5 kW ( 380V-50Hz 3 phase & Customize )	5.5 kW ( 380V-50Hz 3 phase & Customize )
Overall dimension	2200*1500*1600 mm	3200*1500*1600 mm
Weight	2000 kgs	3000 kgs
