Product Details
Product Description
Product Description
Product Introduction

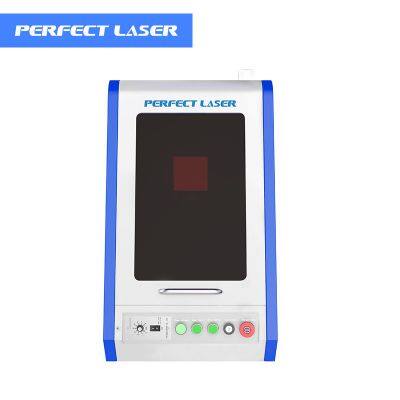

Perfect Laser has innovated out the first class marking technology, it can work on sculptured surface without defocus. 3d laser marking machine adopts German IPG fiber laser technology, while maintaining the excellent beam quality, 3d laser marking machine using the front focus technology, dynamic focus, so that after the Introduction10w 20w fiber laser marking machines have a cover-sealed structure. During work, the enclosed fiber laser marking machine's flog will be kept in the box body without emission to outside.
Environmental, friendly and healthy. It is special designed for European market, which has high demands for working environment.
Product Features
1. Low operation cost, free maintenance for over 10 years
2. Marking speed: he enclosed 20w fiber laser marking machine uses a high-quality imported laser scanning equipment, speed up to 7000mm / s.
3. High Precision: 10w 20w fiber laser marking machines' repositioning accuracy of up to 0.002mm.
4. High-Rate of Electrical-Optical Conversion for the enclosed fiber laser marking machine: The efficiency of 10w 20w fiber laser marking machines optic-electrical converting is up to 70%.
5. High Reliability: MTBF(Mean Time Between Failures) >100,000 hours.
6. Integrated and Compact: Compact, Small, Desktop, Easy delivery
7. Easy Operating: English User Manual, VCD training video, software sending together with the 10w 20w fiber laser marking machines and 24 hours online service.
8. Air Cooling: 10w 20w fiber laser engraving machines adopts air cooling, which has excellent cooling effect than the other cooling method.
Application
Fiber laser marking machines are of good quality output beam, high reliability.
Fiber laser marking machines can be carved both on metal materials and some non-metallic materials.
This kind of enclosed fiber laser marking machine mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry, IC, plastic buttons and other graphic surface.
The effect of fiber laser marker on Bitmap marking is particularly outstanding.
Technical Data
Item
|
PEDB-200
|
Laser power
| 20W / 30W / 50W
|
Central wavelength
| 1064±4nm
|
Polarization
| Random
|
Single pulse power
| 0.8～1.0mJ
|
Beam quality
| <1.7㎡
|
Facular diameter
| 7～9mm
|
Power stability
| <5%
|
Frequency adjusting range adjustable range
| 20~80kHz
|
Pulse breadth
| 80~140ns
|
Pulse adjusting range
| 5~100%
|
operating voltage
| 100~240VAC
|
Fiber Length
| 1.5m
|
Cooling mode
| forced air
|
Operation temperature
| 0~35℃
|
Operation humidity
| 10~95
|
Storage temperature
| -10~60℃
|
Marking Format
| Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number,etc.
|
>>
