Secondhand Cat 320d2l Crawler Excavator Caterpillar 320/325/330 Excavator 20tons Diggers

Product Description

Product Description

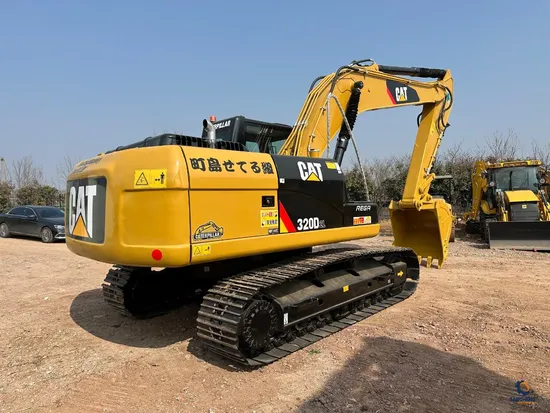

Used Caterpillar 320D2L Excavator For Sale
Brand: Caterpillar
Model: 320D2L
Origin: Japan
Condition: Used/ Very good
A/C:With
Leakage:NO
Hydraulic system powerful and smooth
High working efficience
Well maintained and serviced

Product Parameters

Dimensions			Operational
Shipping Length Of Unit	9460mm		Operating Weight	20330kg
Width To Outside Of Tracks	3017.52mm		Fuel Capacity	410L
Height To Top Of Cab	2950mm		Cooling System Fluid Capacity	25L
Undercarriage			Hydraulic System Fluid Capacity	260L
Track Gauge	2200mm		Engine Oil Capacity	30L
Shoe Size	600mm		Operating Voltage	24V
Max Travel Speed	5.7km/h		Swing Drive Fluid Capacity	8L
Drawbar Pull	205kN		Alternator Supplied Amperage	50amps
Engine			Hydraulic System Relief Valve Pressure	35000kPa
Engine Model	C7.4 ACERT		Hydraulic Pump Flow Capacity	205L/min
Net Power	110kw		Buckets
Power Measured	1800rpm		Reference Bucket Capacity	1m³
Displacement	6.4L		Minimum Bucket Capacity	0.5m³
Bore	102.2mm		Maximum Bucket Capacity	1.2m³
Stroke	130.1mm		Hydraulic System
Net Flywheel Power	110.4kw		Pilot System - Maximum Flow	9 gal/min
Swing Mechanism			Pilot System - Maximum Pressure	566 psi
Swing Torque	61841.6Nm		Maximum Pressure - Travel	5076 psi
Swing Speed	11.5rpm		Maximum Pressure - Swing	3553 psi
Operating Specifications			Maximum Pressure - Heavy Lift	5076 psi
Maximum Bucket Capacity	2m³		Standards
Maximum Cutting Height	0.9m		Brakes	SAE J1026 APR90
Maximum Loading Height	6940.1mm		Cab/Fogs	SAE J1356 FEB88
Minimum Loading Height	1230.2mm		Track
Maximum Vertical Wall Digging Depth	6970.1mm		Standard With Long Undercarriage	700.1mm
Service Refill Capacities			Ground Clearance - Fixed Gauge	17.72 in
Cooling System	25L		Standard With Standard Undercarriage	600mm
Final Drive - Each	8L		Drive
Hydraulic Tank	121.2L		Maximum Travel Speed	5.7km/h
Hydraulic System - Including Tank	261.2L		Maximum Drawbar Pull	20904.2kg
Engine Oil	30.3L		Weights
Fuel Tank Capacity	408.9L		Operating Weight	20330.1kg
Swing Drive	8L		Operating Weight - Long Undercarriage	21570.2kg
Hydraulic Tank - Including Suction Pipe	136.3L		Operating Weight - Standard Undercarriage	20330.1kg
Sound Performance			Base Machine With Counterweight And 800 Mm Shoes	17470kg
Performance	ANSI/SAE J1166 APR 90

Detailed Photos
Packaging & Shipping
Container: The cheapest and fastest one.Flat rack: Often used to ship two-wheel loader, max load-bearing is 35 tons.Bulk cargo ship: Better for bigger construction equipment.
Our Advantages
Our company do win-win business with good exporting business reputation which provide used/second hand construction machinery, for instance used wheel loaders,used excavators, used motor graders , used bulldozers ,road rollers ,dump trucks ,cranes ,forklifts ,tractor trucks ,and pump trucks.The above is the hot sale line for global market with the following advantages.
1>Original parts and good working condition;
2>Low working hours and well-test service for machinery;
3>Strong engine power;
4>Complete accessory and no oil leaking;
5>Competitive price , price is negotiable to some degree;
6>Good After-sales Service!
After Sales Service
1> maintainence and usage instruction
2> free spare parts
3> long time technical support on line
If you have any questions, please don't hesitate to send me your inquiry and I will solve all the problems for you! FAQ
1.How can we guarantee quality and does the machines are original? Yes ,all the machines are original ,and our engineers team will always do Inspection before shipment;2. What can you buy from us?Used Excavator,Used crane,Used Grader,Used Loader,
Used Bulldozer,
Used Roller,Used dump trucks,Used Forklift.3.What services can we provide?we can have meeting on-line video call to check these machines details and performance if necessary, you can visit our factory.and we can provide all the details and vedios to present the machines to you.
4. Is it convenient to visit your factory? How to go there?
Welcome to visit our factory. It locates in Hefei City, Anhui Province, China. By taking high-speed railway or plane are both ok. We will pick you up anytime you arrive!
5. How can we make a deal done?Inspecting the machine-->if satisfied-->30% Down payment For Booking Shipping -->40% Deposit Before Loading -->30% Balance Pay Against The Copy Of BL
6.How long will it deliver to your country?The estimation days for deliver to your country is around 15 - 45 days

---
