Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
X /Y/Z Axis Travel
800/500/500mm
Spindle Nose to Table Surface
120-620mm
X/Y/Z Axis AC Servo Motor
Torque N.M 15/15/22
Spindle Center to Column Surface
550mm
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 2800*2360*2450mm
Product Description
4 axis 5 axis metal cnc milling machine for metal
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

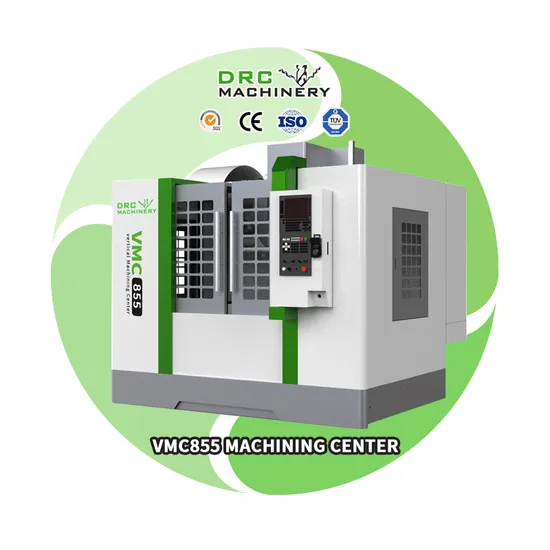

Taiwan Hiwin Guide Rail Cnc Machining Center Vmc850 Vmc855 Cnc Milling Machine Center
CNC vertical machine center vmc cnc milling machining center with high quality for metal work DRC machining center is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Cnc Milling Machine Center Features: 1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product 2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements) Vertical machining center fearturs : 1.High quality resin sand 2. Japanese NSK bearing 3. Twaiwan spindle 4. Germany R+W coupling 5. Taiwan ball screw and locking nut 6. Automatic lubrication system 7. Taiwan pressure cylinder 8. Chip conveyor at optional
Product Parameters
Model
| vmc600
| VMC855
| VMC1055
|
Travel parameters of 3 axis
|
X /Y/Zaxis travel
| 900/350/500mm
| 800/550/550mm
| 1000/500/500mm
|
Spindle face to table distance
| 100-600mm
| 120-670mm
| 120-670mm
|
Distance between spindle center and column guide surface
| 460mm
| 613mm
| 613mm
|
Worktable parameters
|
Worktable size
| 1250×360 mm
| 1000×550mm
| 1000×550mm
|
Maximum load bearing of worktable
| 400kg
| 600kg
| 600kg
|
T Shot
| 3×18×80mm
| 5×18×85mm
| 5×18×85mm
|
Feeding parameters
|
X/Y/Z axis rapid movement rate
| 10/10/10 m/min
| 48/48/48m/min
| 48/48/48m/min
|
Feed moving velocity X, Y, Z
| 1-6m/min
| 1-12m/min
| 1-12m/min
|
Spindle parameters
|
Main shaft connection
| Belt
| Belt
| Belt
|
Spindle taper
| BT40-120
| BT40-140/150
| BT40-150
|
Range of spindle speed
| 8000rpm
| 8000rpm
| 8000rpm
|
Spindle motor power
| 5.5kW(Alternating current servo)
| 11kW(Alternating current servo)
| 11kW(Alternating current servo)
|
ATC paremeters
|
ATC capacity
| 16qty
| 24qty
| 24qty
|
Maximum tool size
| Φ92mm(tool from a distance)
| Φ120mm(tool from a distance)
| Φ92mm(tool from a distance)
|
Maximum tool weight
| 5kg
| 8kg
| 8kg
|
Precision
|
PositionaI accuracy(JIS standard)
| ±0.008/300mm
| ±0.008/300mm
| ±0.008/300mm
|
Repeated positioning accuracy(JIS standard)
| ±0.005mm
| ±0.005mm
| ±0.005mm
|
Shape and weight
|
Machine size
| 3300×2280×2550 mm
| 2800×2360×2450mm
| 2800×2360×2450mm
|
Weight
| 3800 kg
| 5300kg
| 5300kg
|
>>
