High Speed CNC Vertical Drilling Machine Price Zk5163c Zk5180c

Product Description

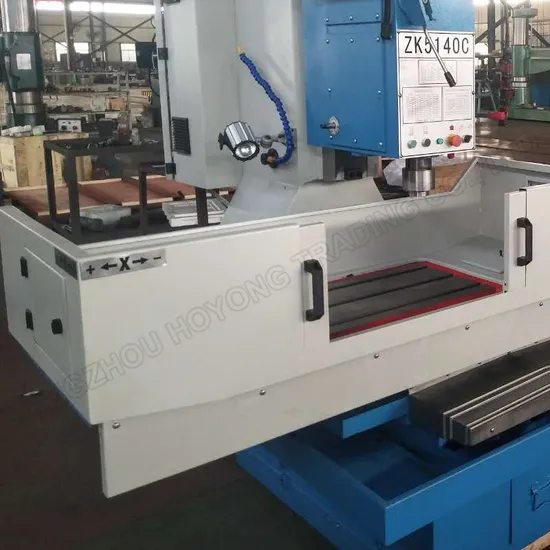

CNC Drilling Machine ZK5140 and ZK5150
1. Zk5140B and Zk5140B-1 vertical cnc drilling machine are universal drilling machine.the max drilling diameter is 40mm.
2.Zk5150B and Zk5150B-1 vertical cnc drilling machine are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Zk5140B, Z5150B is fixed and The Zk5140B-1, Zk5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.

Model	Unit	ZK5163C
Worktable size	mm	1000x545
Max. drilling diameter	mm	63
Worktable area	mm	850x400
T-slot width x NO.	mm	18x3
Spindle taper	No	Morse 5#
Spindle speed	rpm	40-570(9 steps)
Main motor power	kw	5.5
Spindle box stroke (manual)	mm	300
Spindle stroke	mm	240
Moving range	mm	850x400x240
Distance from spindle end to worktable	mm	184-724
Distance from spindle center line to column guide surface	mm	375
Fast moving speed X/Y/Z	m/min	15/15/1.3
Feed rate (Z axis)	Mm/min	600
CNC system
Servo motor power	kw	1.32/1.32/3.5
Servo motor torque	N.m	10/10/22
Spindle torque	N.m	800
Max. feed resistance	N	30000
Positioning accuracy	mm	0.03/300
Repeatability	mm	0.03/300
N.W./G.W.	T	3.1/3.5
Machine size(LxWxH)	cm	188x159x236
Package size(LxWxH)	cm	236x249x258

---
