Farm Machinery Red Offset Disc Harrow

US$5,000.00 3 Sets (MOQ)

Basic Info.

Application Field
Agriculture
Farming Policy
Bed Planting Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Tractor
Arbor Configuration
No
Certification
CE, ISO9001
Color
Red
Warranty
1 Year
Matched Power
180-220 HP
Working Width
3500mm
Weight
2850kg
Transport
Tyre
Transport Package
as Order
Trademark
AS REQUEST
Origin
China
HS Code
84321000
Production Capacity
1000 Sets/Month

Product Description

Product Description

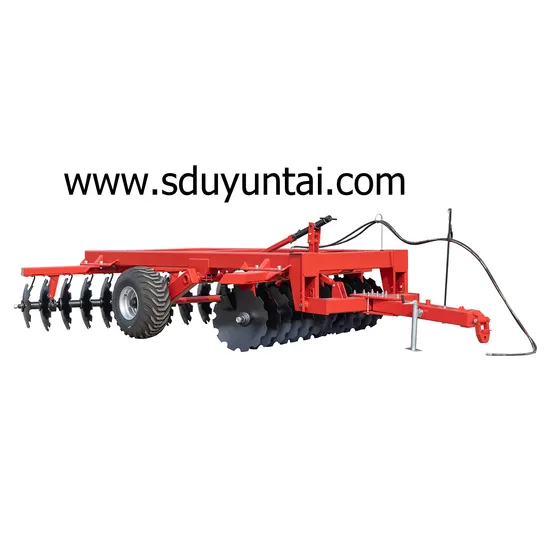

1BZY HYDRAULIC PRESSURE OFFSET HEAVY DISC HARROW
The traction type hydraulic offset heavy disc harrow is mainly suitable for smashing the stubble before ploughing, breaking the surface knot, cutting the straw into the field, breaking up the clods after ploughing, leveling and protecting the hoe, etc., and can also replace the plough on the mature land to carry out the soil ploughing operation. The work efficiency is high, the power utilization is reasonable, and the ability to break up the soil is strong. After the working, the surface is smooth and the soil is loose. It has strong adaptability to the filed with heavy soil, wasteland and weeds.
Photos

Model Number of disc Size of disc Working width (mm) Working depth (mm) Weight (kg) Matched tractor (hp) Note
(Bearing Assembly)
1BZY-1.8 16 610x6 1800 150-200 1420 70-85 Grease or oil bath
1BZY-2.0 18 660x6 2000 180-220 1580 85-100 Grease or oil bath
1BZY-2.2 20 660x6 2200 180-220 1660 100-120 Grease or oil bath
1BZY-2.5 24 660x6 2500 180-220 2100 125-150 Grease or oil bath
1BZY-3.0 28 660x6 3000 180-220 2300 150-180 Grease or oil bath
1BZY-3.5 32 660x6 3500 180-220 2850 150-180 Grease or oil bath
1BZY-4.0 36 660x6 4000 180-220 3100 180-200 Grease or oil bath

FOR MORE INFORMATION,PLEASE SEND EMAIL TO US.
