mineral truck brake

Product Details

Product Description

Product Description

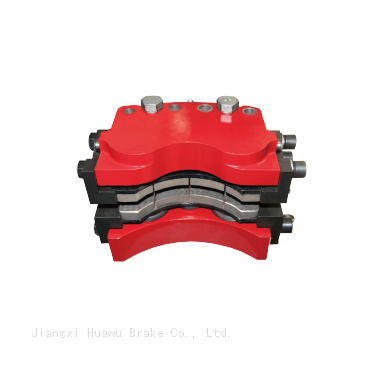

Hydraulic Caliper Disc Brake
Travel braking in the driving process of mineral truck.
Model：KCX6095
1、Mounting attitude：3、9、12 o`clock
2、Inlet type：0.562''-18 UNF
3、Mounting bolts(Customer self-provided)：
Bolts 1.000''-14 UNS-2A×360 (The length of the bolt is for reference only) 6 pieces
Bolts 1.000''-14 UNS-2B 6 pieces
Bolts 1.000''-8 UNC-2A×90 (The length of the bolt is for reference only) 6 pieces
Model：KCX6090
1、Mounting attitude：1:30 to 4:30,7:30 to 10:30 o`clock
2、Inlet type：0.4375''-20UNF
3、Mounting bolts (Customer self-provided)：
Bolt 1.250''-12 UNS-2A×95 (The length of the bolt is for reference only) 8 pieces

---
