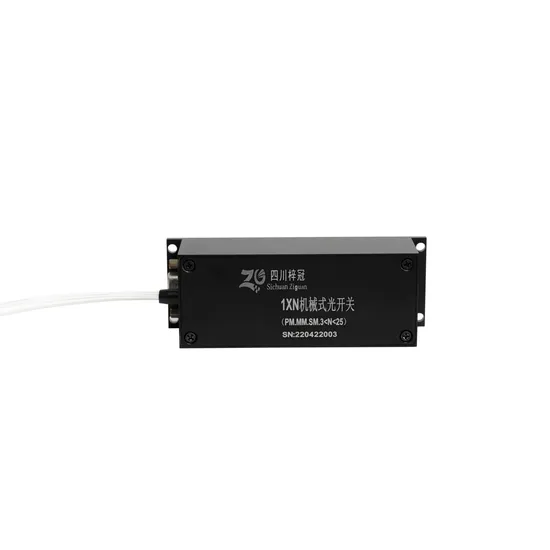

1260-1650nm Array Mems Optical Switch for Optical Signal Switching

Product Description

1.Schematic diagram of optical path

Operating wavelength range	1260-1650nm
Operating wavelength	1310nm/1550nm
Insertion loss	≤2.0dB
Wavelength dependent loss	≤0.8dB
Temperature dependent loss	≤0.5dB
Polarization dependent loss	≥0.3dB
Return loss	≥50dB
Crosstalk value	≥50dB
Repeatability	≤±0.1dB
Switching time	≤10ms
Maximum optical power	≤500mW
Fiber type	SM-9/125
Optical interface type	FC/APC/Flange connector
Control interface	RS232
Operating voltage	DC5V
Service time	≥10 billion times
Power consumption	≤10W
Operating temperature	-20ºC ~ +70ºC
Storage temperature	-40ºC ~ +85ºC
Size	200x100x22mm

2.Specifitations

Operating wavelength range	1260-1650nm
Operating wavelength	1310nm/1550nm
Insertion loss	≤2.0dB
Wavelength dependent loss	≤0.8dB
Temperature dependent loss	≤0.5dB
Polarization dependent loss	≥0.3dB
Return loss	≥50dB
Crosstalk value	≥50dB
Repeatability	≤±0.1dB
Switching time	≤10ms
Maximum optical power	≤500mW
Fiber type	SM-9/125
Optical interface type	FC/APC/Flange connector
Control interface	RS232
Operating voltage	DC5V
Service time	≥10 billion times
Power consumption	≤10W
Operating temperature	-20ºC ~ +70ºC
Storage temperature	-40ºC ~ +85ºC
Size	200x100x22mm

3.Dimension
4. Pin definition

Pin#		Signal name	Type	Description
1	2	VCC	Power	+5VDC , Digital power supply
3	4	GND	Power	Digital ground
5		TXD	Output	Transmit Data
6		RXD	Input	Receive Data
7	8	GND	Power	Digital ground
9,10,11,12,13,14,15,16,17,18,19,20		NC

---
