Best Sale Paper Cup Forming Machine

Product Description

Full Automatic Three Plate Paper Cup Making Machine Product Description

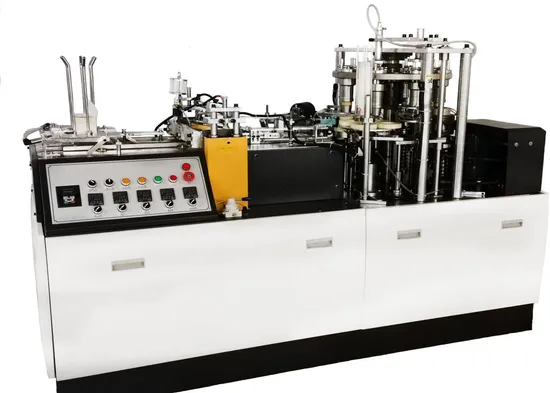

CW-DL12 Single PE Coated Paper Cup Forming Machine is multi-station automatic machine. It has continuous automatic procedures like feeding, sealing, oil -filling, washing, heating, knurling, curling, unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and beverage. If you want to make two-side ( double) PE coated paper cups, we recommend you to use CW-DL12, ultrasonic paper cup forming machine.
FEATURES:
1) The main-frame of the machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %.
2) The shape of the head is oblate, which can seal the cups easily. It is much better than that is round.
3) The machine sends the bottom paper up to the cup automatically and adjusts itself because of a spring.
Product Parameters

Model	CW-DL12
production capacity	55-60 pcs/min
required paper	150-400gsm one side PE coated paper
container capacities	(A)50-90mm; (B)45-115mm; (C)35-64mm; (D)4.5-10mm
total power	4kw 220V 50HZ/ 380v 50hz
weight	1350kg
overall dimensions	2555*1250*1680mm
