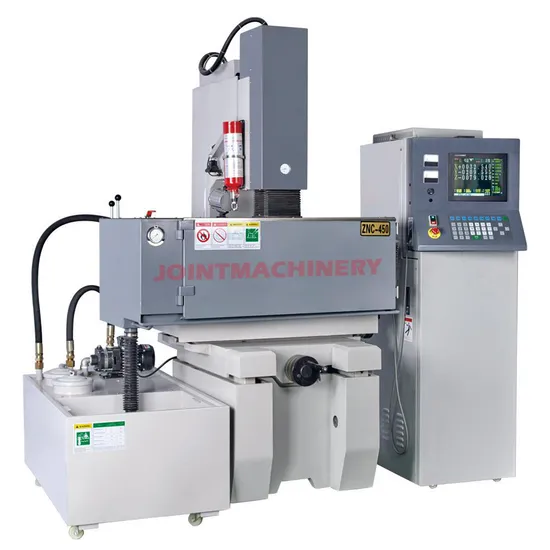

High Precision Electric Discharge Machine Znc-650 EDM Die Sinking Machine for Metalworks

Product Description

√ Perfectly crafted for handling ultrahigh precision molds and intricate parts processing, ensuring unparalleled accuracy and performance.
√ Experience U-class premium ultra-fine surface processing with minimal material loss and a spectacularly high-quality finish.
√ Expertly designed for machining intricate curved parts, precision connectors, and finely detailed precision components, adeptly tackling even the most challenging machining tasks.
√ Achieve magnificent large-area high-gloss uniform processing and exquisitely detailed small-area PIKA surface treatment.
High Precision Electric Discharge Machine Znc-650 EDM Die Sinking Machine for Metalworks

Model	Unit	ZNC-650
Travel	mm	X:600 Y:500 Z:250 Z1:280
Table size	mm	1000*550
Electrode load	kg	250
Working load	kg	2000
Max workpiece size	mm	1400*900*800
Oil tank groove diameter	mm	1800*1000*600
Oil tank outer diameter	mm	1900*1200*600
Oil tank capacity	L	800
Machine weight	kg	3600

Model	Unit	ZNC MACHINE			CNC MACHINE
Control mode & Axis No.		NC with close circuit / Single Z axis control			NC with colse circuit / X,Y and Z axis control
Min setting value	mm	0.005 (0.001)			0.005
Max setting value	mm	9999.995 (9999.9999)			9999.995
Coordination system		(INC), (ABS)			(INC), (ABS)
Screen		15''TFT			15''TFT
Control system		Industrial PC			Industrial PC
Moving velocity of controller		0.005mm (Per Unit)*1, *5, *10			0.005mm (Per Unit)*1, *5, *10
Procedure in store		0-999 groups			0-999 groups
Max current for processing	A	50	75	100	50	75	100
Input rated power	Kva	5	6	10	5	6	10
Max cutting processing speed	mm2/min	360	560	700	360	560	700
Consumption of the electrode head	%	<0.2			<0.2
Best surface rough	μmRa	0.25			0.25
Dimension	mm	620*860*1850			620*860*1850
Net weight	kg	210			215

EDM machines excel in processing a wide array of high-hardness materials such as cemented carbide and hardened steel, adeptly handling the crafting of complex-shaped molds and parts. They are indispensable for cutting, grooving, and removing broken tools like drills and taps from workpiece holes, making them essential for advanced manufacturing needs.

Shenzhen Joint Machinery Co., Ltd. proudly stands as a distinguished manufacturer and exporter, specializing in CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Our unwavering dedication to delivering exceptional machine quality and outstanding customer service has earned us a stellar reputation on the global stage. We relentlessly focus on enhancing machine quality, ensuring our products consistently exceed the highest industry standards. Our machines integrate pioneering core technologies from Taiwan and Germany, paired with cutting-edge production equipment and processes, guaranteeing superior product quality and reliability. Renowned for their exceptional precision, stability, and dependability, our machines proficiently cater to diverse complex and high-demand machining needs. Exported worldwide, our products enjoy widespread acclaim and popularity among our clientele. Our expansive market presence encompasses Asia, Europe, South America, North America, and beyond. We have nurtured enduring partnerships with customers across various countries and regions, collaboratively creating significant business value.

---
