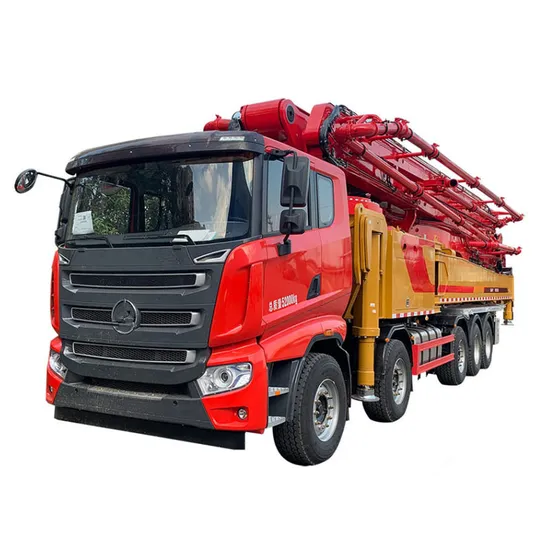

Used Sanny Concrete Pump Truck Price Syg5360thb 49m with Best Quality

Product Description

Company Profile Used Sanny Concrete Pump Truck Price Syg5360thb 49m with Best Quality
The company is a smart networked information company that specializes in supply chain management for imports and exports, as well as complete logistics. We primarily concentrate on the worldwide industry of Chinese construction machinery. Our selection includes concrete pump trucks, mixer trucks, and a variety of other electric and construction equipment. Furthermore, we collaborate with popular brands such as Sanny and Chery. Our track record in the global EPC industry and the successful project executions illustrate our dedication to expanding trade and services internationally.
Product Parameters

	Model		Unit	470C-10(SZ-AM)	SYG5360THB
X-unit,Spe	Length		mm	10750
	Width		mm	2550
	Height		mm	3600
	Dead weight		kg	25500
Boom & Outrigger Specification	Vertical reach		m	47
	Horizontal reach		m	42
	Reach depth		m	29.3
	Unfolded reach		m	13.9
	1st Section	Length	mm	9760
		Articulation		89°
	2nd Section	Length	mm	7670
		Articulation		180°
	3rd Section	Length	mm	7410
		Articulation		180°
	4th Section	Length	mm	9670
		Articulation		235°
	5th Section	Length	mm	8545
		Articulation		215°
	6th Section	Length	/	/
		Articulation	/	/
	Rotation			±360°
	Front outrigger spread L-R		mm	8600
	Rear outrigger spread L-R		mm	9000
Pumping Systerm Specification	Output	Low-pressure	m3/h	200
		High-pressure	m3/h	137
	Pressure	Low-pressure	MPa	8.3
		High-pressure	MPa	12
	Max. strokes	Low-pressure	times/min	33
	per minute	High-pressure	times/min	22
	Delivery cylinder diameter		mm	260
	Stroke length		mm	1900
	Hydraulic system			Open
	Hydraulic system oil pressure		MPa	32
	Oil tank capacity		L	680
	Water tank capacity		L	620
	Pipeline size		mm	125
	End hose length		m	3
	End hose diameter		mm	125
Chassis Specification	Chassis brand			/
	Chassis model			/
	Engine type			/
	Engine maximum net power		kW/rpm	/
	Emission standard			/
	Capacity of fuel tank		L	/
	Displacement		L	/
	Max. speed		km/h	/

Detailed Photos
OUR SERVICES 1-Exceeding Customer Expectations By providing customers with superior service,we will make every customer's equipment to achieve the maximum value

2.Exceeding Industry Standards -By implementing the highest service standards in the industry,we will achieve The highest levels of customer satisfaction.
