US$1,400.00-1,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Transport Package
Standard Plywood Package
Production Capacity
50 Sets/ Month
Product Description
Product Description Feature
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Machine main Specification:

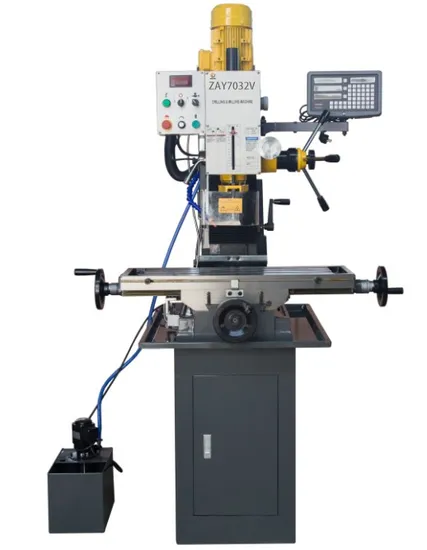

| Specification | ZAY7032V/1 | ZAY7040V/1 | ZAY7045V/1 |
| Max.Drilling capacity | 32mm | 40mm | 45mm |
| Max. face mill capacity | 63mm | 63mm | 80mm |
| Max. end mill capacity | 20mm | 20mm | 32mm |
| Distance from spindle nose to table | 450mm |
| Min. distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | MT3 or R8 | MT3 or R8 | MT4 or R8 |
| Range of spindle speed(2 steps) | 100-530, 530-2800rpm |
| Auto-feeding steps of spindle | 6 steps |
| Auto-feeding amount of spindle | 0.06-0.30mm/r |
| Swivel angle of headstock(perpendicular) | ±90° |
| Table size | 800×240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor power(DC) | 1.1kw | 1.1kw | 1.5kw |
| N.W/G.W | 320/370kgs | 320/370kgs | 325/375kgs |
| Packing size(L*W*H) | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
| Loading amount/20" container | 36pcs |
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Standard accessories:
>>
