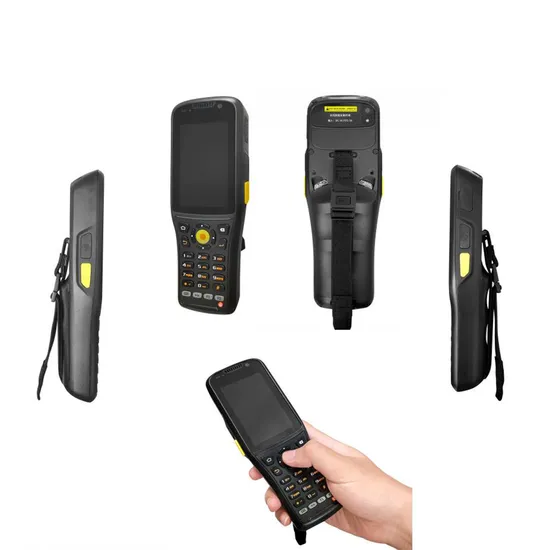

Data Terminal Handheld Rugged Android Data Collector Mobile Handheld PDA C60

Product Description

Data Terminal Handheld Rugged Android Data Collector Mobile Handheld PDA C60 Product Description Features 1. Support for Android 10.0 system 2. Integrated 4G/3G network communication, WiFi, GPS,Bluetooth and other communication modes 3. Equipped with 4500mAh large capacity battery, the machine has a endurance of long time. 4. Equipped with 8 mega-pixel auto focus camera, easy to collect images and video information 5. Support 1D/2D, NFC (Optional) and other functional modules to meet the application needs of multiple industries
Product Parameters

Operation System	ARM Cortex-A53 64-bit Quad-core processor 2.0GHz
CPU	Android 9.0
Memory	1GB RAM + 16GB ROM (Optional 2+16, 3+32, 4+64)
Expansion Slot	PSAM x 2; TF x 1; Micro SIM x 2; POGO Pin x 1; Type -C x 1
Display	3.2 inch IPS display with 480×800 resolution
Touch Panel	Support multi-touch, support wet hand and glove operation
Camera	Rear: 13MP, front: 5MP, auto focus with LED fill light
Imager Window	Corning Gorilla
Keyboard	30 keys in total, front keys 26, side keys 4
Battery	4.35V 5200 mAh Lithium polymer battery
Power Adaptor	The Word Standard:input 100-240V;output DC5V 2A
Audio Frequency	Built-in microphone
Prompt	Vibration Tip/LED Tip/Audio Tip
Vibration Motor	Built-in programmable vibration motor
Size & Weight	182.49mm x 65.56mm x 25.59 mm, 320g (including battery)
WWAN	2G: GSM (850/900/1800/1900MHz) 3G: WCDMA (850/900/1900/2100MHz) 4G: TDD-LTE (B38/B39/B40/B41) 4G: FDD-LTE (B1/B3/B5/B7)
WLAN	Wi-Fi 802.11a/b/g/n
WPAN	Bluetooth 4.0 (transmission distance: 5~10 meters )
GPS	Support GPS/AGPS,BDS
1D Scanning	Optical resolution ≥ 4 mil, scanning depth of field 3.81 cm - 60.98 cm, scanning angle 47°± 3°(standard), scanning speed 102 times ± 12 times per second (compatible with mainstream brands) 1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5,Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post, etc.
2D Scanning	Optical resolution ≥ 3 mil, optical resolution omnidirectional, scanning speed 300 times/s 1D: Can read 1D barcodes; 2D: PDF417, MicroPDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Hanxin code, etc.
RFID	NFC: support 13.56 MHz; support ISO14443A/14443B/15693protocol, reading distance: 2~5cm UHF: support 840-960MHz UHF RFID, reading distance: 2 meters Supports reading and writing of EPC C1/G2, 18000-6C protocol cards and tags
Standard Accessories	Battery, power adapter, USB cable, hand strap
Charging Interface	1 Type-C interface
Optional Accessory	Charging cradle
Development Tool	Android Studio+Eclipse
Programming Language	Java
Operating Temperature	-25ºC ~ 55ºC
Storage Temperature	-40ºC ~ 70ºC
Humidity	5% ~ 95% (non-condensation)
Drop spec	Multiple 1.2m drops to tile over concrete
Sealing	IP65

Company Profile







FAQ 1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;

---
