US$7,500.00-8,000.00
|
1 sets
(MOQ)
|
Basic Info.
Transmission Method
Machinery
Hydraulic Station Motor Power
3kw
Transport Package
Naked with Plastic Film
Specification
5800mm*1600mm*1450mm
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
580.00cm * 160.00cm * 1450.00cm
Package Gross Weight
4000.000kg
Product Description

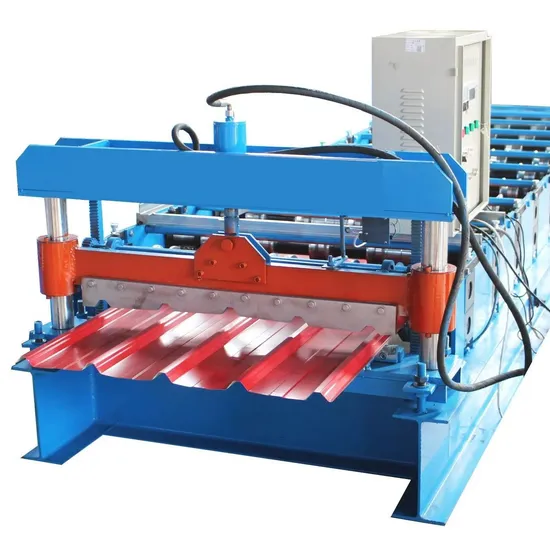

| Name | IBR 840metal roofing panels roll forming making machine roofing wall sheets |
| Material thickness | 0.3-0.8mm |
| Frame Design | 350H steel |
| Roll Stages | 14-15 stages |
| Material Of Forming Roller | 45# steel CNC Iathes Hard Chrome Coated |
| Shafts Diameter | 70mm |
| Thickness Of Middle plate | 16mm |
| Main Motor Power | 4KW |
| Speed | 13-15M/min |
| Electric Standard | 380V/50HZ/3PH or as your need |
| Color of Machine | Blue or as your requirements |
1. Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
2. Installation
If necessary, we can send one technician to your factory to install the machine; you need assist our technician to get the visa and pay for the two-way flight tickets, local accommodation (at least three-star hotel with air condition), food, visa cost. And you need pay 200USD/day for technician extra. The total time will be caculated as per the time that shown on the fright tickets when our technician leaves China and arrives back to China.
>>
