Horizontal Spiral Shenzhou Wooden Cases 3430*920 *1220mm Electric Centrifuge Machine

Product Description

Product Description The 3-phase centrifuge is an efficient separation equipment that uses the principle of centrifugal settling to continuously separate oil water residue. It is mainly consistent of drum, screw, differential system, liquid level baffle, driving system, and a control system. Its structural composition is similar to that of a two-phase centrifuge. This centrifuge is mainly used for clarifying or removing impurities from aged oil in oil öelds, used engine oil, and food waste oil. Working principle The centrifuge starts to rotate at full speed, and the slurry is added to the spiral inner cylinder through the feed pipe and then øows into the drum. Under the action of centrifugal force, the solid slag with a higher density settles on the drum wall, and is pushed towards the small end of the drum by the spiral conveyor and discharged from the slag outlet;
Oil and water form a concentric ring, and the light phase liquid (oil) overøows from the light phase liquid outlet, while the heavy phase liquid (water) øows into the pump chamber at the large end of the drum and is discharged by the centrifugal pump pressure. The thickness of different liquid rings is adjusted by the variable centripetal pump wheel.
Product Parameters

Designation	LWS355X1460-N	LWS450X1800-N	LWS520X2080-N	LWS650X2600-N
Bowl diameter	355 mm / 14 in	450 mm / 18 in	520 mm / 20 in	650 mm / 26 in
Bowl length	1460 mm / 57 in	1800 mm / 71 in	2080 mm / 82 in	2600 mm / 102 in
Max. Speed	3500 rpm	3200 rpm	3000 rpm	2500 rpm
Typical speed	2800 rpm	2500 rpm	2300 rpm	1800 rpm
G force	2435	2580	2620	2275
Capacity	5 m³/h	12 m³/h	15 m³/h	25 m³/h
Main drive motor	15 kW	37 kW	45-55 kW	75-79 kW
Back drive motor	7.5 kW	11 kW	11-22 kW	30 kW
Dimensions	3430 x 920 x 1220 mm 135 x 36 x 48 in	4000 x 1320 x 1150 mm 157 x 52 x 45 in	4510 x 1410 x 1170 mm 178 x 56 x 46 in	5050 x 1800 x 1450 mm 199 x 71 x 57 in
Weight	2480 Kg	4200 Kg	5000 Kg	8900 Kg

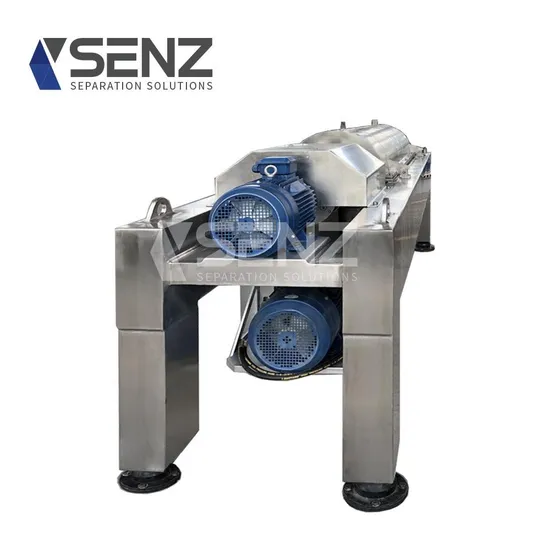

Detailed Photos
Packaging & Shipping
Company Profile ShenzhouGroupCo., Ltd. is a manufacturer of solid liquid separation equipment. We mainly produce decanter centrifuges, 3-phase centrifuges, stacked screw dehydrators, centrifugal dehydrators, integrated sludge thickening and dewatering machines, complete sludge dewatering equipment, sewage treatment equipment, planetary gear differentials, and related supporting equipment for decanters (such as sludge cutting machines, shaftless screw conveyors, integrated øocculant preparation systems, etc.). With a production history of over 40 years, our products are distributed throughout the country and have gone abroad. We have long-term cooperation with higher education institutions such as Zhejiang University of Technology. Having the ability to design and develop centrifuge products, obtaining national patent applications, and obtaining CE and ISO9001 approvals and certiöcations. Committed to research and development and manufacturing, providing centrifugal separation equipment and solutionsto tens ofthousands of domestic and overseas users. Mr. Sun, the Chairman of the Board, has over 40 years of design and manufacturing experience. He has worked in the örst batch of decanter production and research units in China, participated in university collaborations and lectures. Leading the development direction of centrifugal separation equipment and technology. The company has independent import and export rights, and its equipment is currently exported to 70 countries including the United States, Canada, Australia, Russia, Singapore, etc.

---
