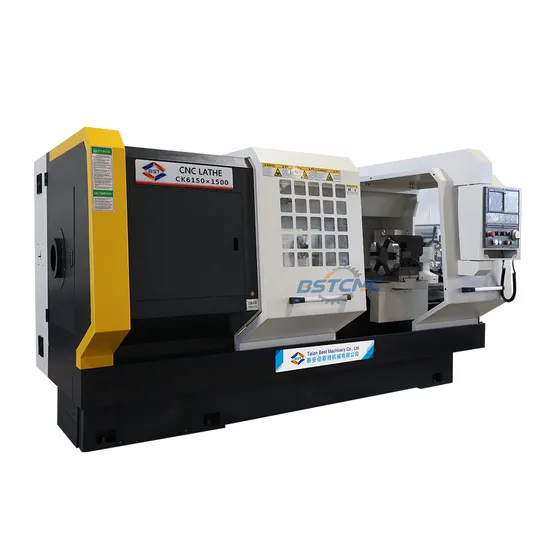

Cdk6150 Heavy Duty Big Bore Pipe Threading CNC Turning Milling Lathe

Product Description

Product Description
This series of CNC lathe can adpot various CNC systems to achieve automatic contorl. Widely used, capable of udetaking various turning tasks. Such as turning various parts End faces, innner and outer cylindrical surface,conical surface, spherical sueeface, curved surface, groove, end face, etc, especially suitable for turning various inner and outer pipe threads. It is a device designed, developed and produced specifically for some lightweight large-diameter workpieces, with large spindle holes and high cost-effectiveness, high stability , high rigidity and high accuracy .
Product Parameters

Item		Unit	CDK6150 (φ110)		CDK6150 (φ140)		CDK6150 (φ160)
Max dia.swing over bed		mm	500
Max dia.swing over cross slide		mm	270
Max.length of work-piece		mm	1000/1500/2000/3000
Width of bed		mm	400
Spindle bore		mm	110		140		160
Power of spindle motor		Kw	7.5
Mode of spindle speed			Three step variable speed
Range of spindle speed		r/min	I70-280 II120-430 III210-800
Max.traverse of X/Z		mm	X:310 Z:800/1300/1800/2800
X/Z rapid traverse		mm/min	4000
Tailstock	Travel	mm	150
	Taper		Morse NO.5
Electric tool-post	Stations		Vertical four-station
	Dimension	mm	32 × 32
Tool change time		S	2.6
Positioning accuracy		mm	X:0.020/Z:0.03
Repositioning accuracy		mm	X:0.012/Z:0.016
Overall dimensions(L*W*H)		mm	2700 × 1500 × 1700
Machine weight		T	2.5	2.7		2.9

Standard configuration: Optional configuration:
-GSK980TC3 control system; -Siemens808D,Fanuc0i-TF, Syntec22TA.....
-3 jaws manual chuck ; -Hydraulic chuck, Pneumatic chuck ;
-4 station electric tool post ; -6/8/12 station electric tool post or Servo , hydraulic and power turret;
-Manual tailstock; -Hydraulic / Pneumatic tailstock;
-Chip conveyor ;
-Single power head and Combined power head;

---
