Automatic Shoes Cloth Mat CNC Knife Leather Digital Cutting Machine

Product Description

Factory Sales CNC Automatic Cloth Textile Fabric Multi Layer Cutting Machine 05
Product Description

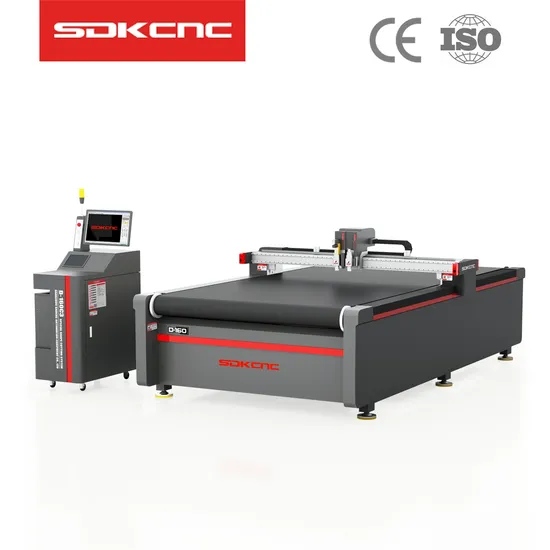

Δ D-160C3(GEN 2) is a roller feeding Hi-speed shaped cutting machine independently developed and produced by SDKCNC.It is an efficient guide belt cutting machine for flexible materials
Δ With standard configuration of hi-efficiency electric oscillating knife & straight knife and the universal tool holder It can be equipped with pneumatic oscillating knives,crossing wheel tool,V-cut tool ,kiss cut tool and function of felt roller feeding .
Δ It can fastly finish steps of full cutting ,half cutting ,perforating ,creasing ,contour recognition cutting and other processes.Widespread usage of industry like advertising logo,print packaging ,garment samples,shoes&bags ,car decaration ,textile&home decaration,sealing gasket,carpet mats and so on .
01 BED STRUCTURE
Welded bed with Thick-walled square tube in stress aging relief
All planes and installation holes are precision machined by gantry milling
High-strength cast aluminum crossbeam
02 TRANSMISSION
Transmission:X/Y-axis with helical rack & linear guide rail,Z-axis with mute screw
03 DRIVE MODE
The whole machine adopts AC servo drive,Y-axis dual motor drive,
04 UNIVERSAL TOOL HOLDER
This facility have double tool holder which can adopts different cutter for different materials .
Tool holder can support oscillating cutter ,half cutter ,round cutter and so on
05 CCD SYSTEM
the positioning status is based on optical system of high definition ccd camera
automatically pick up the contour
07 FELT +ROLLER FEEDING TABLE
The facility adopts felt+roller feeding system which improve efficiency for bulk materials in continuous processing
Product Parameters

Technical Parameter
Working Area	1600 x 2500 mm
Repeat position accuracy	±0.01 mm (Depending on the cutting tool)
Tool holder	double universal tool holder
Support tool type	oscillating cutter/ indentation tool /half cutter etc
Working mode	Flexible material edge patrol cutting
Control system	6-8 Axis Control System
Feed mode	Felt roller feeding system (automatic)
Drive motor	AC Servo Motor + Reducer
Type Name	D-160C3(GEN 2)
Working Table	Felt +roller feeding table
Vacuum Pump	5.5KW

Application Industry
Δ Suitable for high-speed cutting of flexible materials such as leather, fabric, paper, self-adhesive, self-adhesive, etc. Especially suitable for high-speed processing of large quantities of coil materials
Δ Widespread usage of industry like advertising logo,print packaging ,garment samples,shoes & bags ,car decaration ,textile & home decaration,sealing gasket,carpet mats and so on .
Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Just tell us your materials ,thickness ,size and processing demands ,then we will give you best solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4:When will delivery the machine after we got the down payment?
Fastly delivery .Normally we need take 15-20 days for one set .Above 2 sets ,we can negotiate .

Q5:How do you provide after-sales services?
You need confirm with our engineer in the group what the problem is ,and our engineer will confirm with if can solve it by remote guidance ,if cant solve it by remote video talking ,then we will send the acceptable express for replacing parts for you quickly.

---
