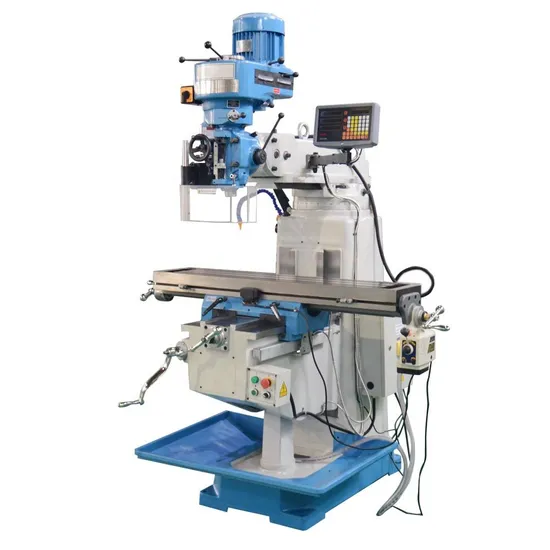

High-Precision Universal Turret Drilling and Milling Machine X6332z

Product Description

Product Description Specification
Standard with:
1. Draw Bar
2. Tools Box and Tools
3. Working Lamp
4. Electric Cabinet
5. Manual Oil Pump
6. ISO40 spindle taper Main features:
1. Double 55°sawllowtail guideway is adopted on both Y and Z axis,So it is easy to adjust
2. The guideway on saddle is lined with TF wearable material.

	unit	specification
Table size	mm	1320X320
T slot	no	5
Size ( Width )	mm	14
Centre distance	mm	63
Max. load of Table	kg	300
machining range :
table Longitudinal travel(manual/auto)	mm	800/750
table Cross travel (manual/auto)	mm	300
table Vertical travel(manual/auto)	mm	400
MAIN SPINDLE :-
Spindle taper		ISO40
spindle speed /step -- Vertical	rpm	90-2000/8
--Horizontal	rpm	38-1310/12
Max.drilling dia.	mm	30
Max.end milling width	mm	125
Max. vertical milling Dia.	mm	25
Max.tapping dia.	mm	10(steel)
quill travel	mm	120
swivel angle of headstock	degree	±45º
vertical spindle axis to column surface	mm	200-540
vertical spindle nose to table surface	mm	180-580
horizontal spindle axis to table surface	mm	0-350
horizontal spindle axis to arm bottom	mm	175
arm travel	mm	400
Longitudinal/cross feed	mm / min	20-360/8steps
Vertical/step	mm/min	422/1step
Longitudinal/cross rapid speed	mm / min	1200
Rapid Traverse vertical	mm/min	422
automatic spindle feed		0.08/0.15/0.25
main motor	kw	2.2
(X/Y/Z) feed motor	kw	0.55(X/Y),0.75(Z)
coolant motor	kw	0.09
overall dimension	cm	171x172x233
N/W,G/W	kg	2000/2200
