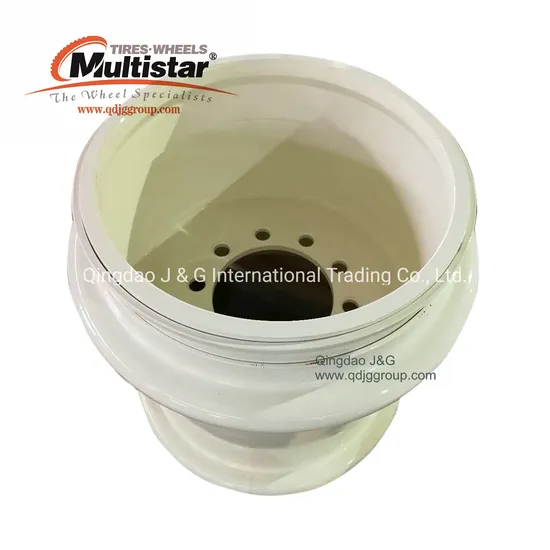

Giantotr Wheels Rims Dump Truck Wheel Rim, Motor Grader Wheel Rim, OTR Wheel Rim 25-14.00/1.5 25-25.00/3.5, 35-17.00/3.5, 49-19.50/4.0 57-29.00/6.0 57-32.00/6.0

US$300.00-800.00 10 Pieces (MOQ)

Basic Info.

Model NO.
25-14.00/1.5; 25-22.00/3.0; 25-25.00/3.5
Wheel Hub Diameter
25′′
Finishing
Painting
Spoke Type
Weld Disc
Certification
ISO
Wheel Hub Brand
Multistar
Condition
New
Rim Design
5-PC Type
Type of Rim
Tubeless
Valve Hole
Both Tube and Tubeless Are Available
Fitted Tyre
29.5r25 29.5-25
Material Steel
Q345
Application
Earthmover, Loader, Crane
Assembly (Tyre with Rim )
Available
Transport Package
in Pallets
Specification
25-14.00/2.0; 25-22.00/3.0; 25-25.00/3.5
Trademark
MULTISTAR
Origin
China
HS Code
870870
Production Capacity
500000PCS/Year

Packaging & Delivery

Package Size
110.00cm * 110.00cm * 70.00cm
Package Gross Weight
2800.000kg

Product Description

Rim size: 25-25.00/3.5
Rim design type: 5-pc type (2 flange + 1 side ring + 1 lock ring + 1 rim base)
Fitted tyre: 29.5R25
Valve hole type: both tube and tubeless are available.
Bolt Hole no. and dia. : A wide range
PCD: A wide range
Center Hole Dia.: A wide range
Offset: A wide range
Disc thickness: A wide range
Aplication: Earthmover/Construction equipment (Large Dump Trucks, Graders & Wheel Loaders, Dozers, Trucks & Load Haul Dumps, Tire Rollers & Finishers)
Relative rim diameters are also available: 20'' 21'' 22'' 23'' 24'' 27", 29", 33", 35", 45'', 49'', 51", 57'', 63"
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
25" 25-8.50/1.3 13.00-25 10 24 335 281 -10
25-9.50/1.7 14.00R25 10 27 335 281 61
25-10.00/1.5 14.00-25 10 24 335 281 80
25-11.00/1.7 10 26 335 281 110
25-11.25/2.0 16.00-25 10 32.5 335 281 0
25-12.00/1.3 15.50-25 WITHOUT DISC A=35 B=556
25-13.00/2.5 18.00-25 10 31 480 430 65
25-13.00/2.5 18.00-25 WITHOUT DISC A=15 B=520 C=576
25-13.00/2.5 18.00-25 DOUBLE DISC A=414 B=240
25-14.00/2.0 17.50-25 10 26 335 281 40
25-14.00/2.0 17.50-25 WITHOUT DISC A=35 B=556
25-15.00/3.0 21.00-25 WITHOUT DISC A=452 B=290
25-15.00/3.0 21.00-25 DOUBLE DISC A=452 B=240
25-15.00/3.0 21.00-25 24 26 425 371 0
25-17.00/2.0 20.50-25 10 17 480 371 0
25-17.00/2.0 20.50-25 WITHOUT DISC A=35 B=556
25-19.50/2.5 23.50-25 10 27 335 281 55
25-19.50/2.5 23.50-25 12 26 425 372 90
25-19.50/2.5 23.50-25 12 21.5 520 465 49
25-19.50/2.5 23.50-25 20 21.5 525 472.5 116
25-19.50/2.5 23.50-25 18 26 320 266 -40
25-19.50/2.5 23.50-25 24 24 425 371 -20
25-19.50/2.5 23.50-25 16 24 522 472 70
25-19.50/2.5 23.50-25 WITHOUT DISC A=30 B=560
25-22.00/1.84 26.50-25 20 21 511.18 462 -98.8
25-22.00/3.0 26.50-25 20 22 425 370 -14
25-24.00/2.5 29.50-25 WITHOUT DISC
25-25.00/3.5 29.50-25 10 26 335 281 51
25-25.00/3.5 29.50-25 WITHOUT DISC A=50 B=544 C=572
25-36.00/1.5 24.00R35 WITHOUT DISC A=432 B=889 C=89
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
26" 26-20.00/1.1 23.1-26 8 22 275 220.8 0
26-20.00/1.1 23.1-26 10 24 335 281 39.5
26-20.00/1.1 23.1-26 12 25 480 436 60
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
27" 27-23.50/2.5 57x25-27 20 18 533 500 67
27-23.50/2.5 57x25-27 24 24 500 449 107
27-23.50/2.5 57x25-27 33 22 508 432 -254
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
29" 29-17.00/3.5 24.00-29 DOUBLE DISC A=520 B=290
29-17.00/3.5 24.00-29 WITHOUT DISC A=40 B=648
29-24.00/3.5 776/65R29 WITHOUT DISC A=40 B=648 C=672
29-24.00/3.5 776/65R29 19 27 500 451.5 117.8
29-25.00/3.5
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
33" 33-13.00/2.5 18.00-33 12 28 595 547 130
33-13.00/2.5 18.00-33 16 22 480 420 100
33-13.00/2.5 18.00-33 WITHOUT DISC A=35 B=747 C=776
33-28.00/3.5 35/65-33 31 26 551 500 262
33-28.00/3.5 35/65-33 38 26 693 617 347
33-28.00/3.5 35/65-33 WITHOUT DISC A=45 B=740 C=775
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
34" 34-14.00/1.3 19 21 511.18 462 27
34-14.00/1.3 24 20 375 330 135
34-16.00/1.5 53x18-34 20 21 511.8 462 60
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
35" 35-15.00/3.0 21.00-35 WITHOUT DISC A=25 B=774 C=824
35-15.00/3.0 21.00-35 DOUBLE DISC A=467 B=290
35-15.00/3.0 21.00-35 12 32 710 659 110.5
35-15.00/3.0 21.00-35 14 36 704.85 644.7 44.8
35-15.00/3.0 21.00-35 16 22 400 350 -11
35-17.00/3.5 24.00-35 12 32 710 659 156
35-17.00/3.5 24.00-35 WITHOUT DISC A=45 B=795 C=825
35-22.00/3.5 23 24 483 431 268
35-22.00/3.5 WITHOUT DISC A=40 B=495 C=826
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
49" 49-17.00/3.5 24.00-49 DOUBLE DISC A=425 B=430
49-17.00/3.5 24.00-49 DOUBLE DISC A=425 B=430
49-19.50/4.0 27.00-49 WITHOUT DISC A=20 B=1120 C=1184
49-19.50/4.0 27.00-49 36 20.6 500 460 15
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
51" 51-22.00/3.0 36 20.6 597.66 558.2 0
51-28.00/4.5 38 26 693 617 405
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
63" 63-36.00/5.0 53/80R63 WITHOUT DISC A=88 B=1430 C=1498.6
Dia Rim Size Fitted Tyre Bolt Hole PC Dia Center Hole Dia Offset/ET
No. Dia.
25" 25-14.00/1.5 17.5-25 10 26 335 281 7.5
25-14.00/1.5 17.5-25 12 16 490 446 0
25-14.00/1.5 17.5-25 16 22 400 350 15
Diameter Type Description Tyres
15" Multipieces 15-9.75/1.37 12.00-15
15-11.00/1.5 14.5-15
15-11.50/1.5
16" Multipieces 16-8.00/0.83 11L-16
16.5 Multipieces 16.5-8.25/0.5 10-16.5
16.5-9.75/0.5 12-16.5NHS
17.5" Multipieces 17.5-10.50/0.5 14-17NHS
18" Multipieces 18-9.00/1.0 12.5/80-18
20" Multipieces 20-7.50/1.7 10.00-20
20-8.0/1.7 11.00-20
20-8.0/2.0 12.00-20
20-8.50/1.7 12.00-20
20-9.00/1.7 13.00-20
20-10.00/1.7 14.00-20 14.00R20 365/80-20
20-10.00/2.0 14.00-20 14.00R20
20-11.00/1.6 12.5-20
20-12.00/2.0 15.5-20 16.00-20
20-13.00/1.0 16/17-20
20-14.00/2.0 17.5-20
20-15.00/1.0 500/70-508
20-15.00/1.7 18L-20
20-15.30/2.0 500/70-508
21" Multipieces 21-11.25/2.0 16.00-21
21-17.00/2.0 20.00-21 1300X530-533
21-18.00/1.5 24.00R21 24.00-21
21-18.00/1.7 24.00R21 24.00-21
22" Multipieces 22-17.00/2.0
23" Multipieces 23-11.00/1.5 14.00-23
23-18.00/2.0 24.00-23
24" Multipieces 24-8.00/1.7 13.00-24
24-8.50/1.7 12.00-24
24-10.00/1.7 14.00-24
24-10.00/2.0 14.00-24
24-10.00VA 14.00-24 16.00-24TG
24-11.25/2.0 16.00-24
24-15.00/1.0 17.5-24
24-16.00/1.1 19.5-24
24-16.00/1.7 54*21-24
25" Multipieces 25-8.50/1.3 13.00-25
25-9.50/1.7 14.00R25
25-10.00/1.5 14.00-25 14.00R25
25-11.00/1.7 16.00-25
25-11.25/2.0 16.00-25
25-12.00/1.3 15.5-25
25-13.00/2.5 18.00-25
25-14.00/1.5 17.5-25
25-14.00/2.0 17.5-25
25-15.00/3.0 21.00-25
25-17.00/1.7 20.5-25
25-17.00/2.0 20.5-25
25-19.50/2.5 23.5-25
25-22.00/1.84 26.5-25
25-22.00/3.0 26.5-25
25-24.00/2.5 29.5-25
25-24.00/3.0 29.5-25
25-25.00/3.5 26.5-25
25-36.00/1.5 24.00R35
26" Multipieces 26-16.00/1.1 18.4-26
26-20.00/1.1 23.1-26
27" Multipieces 27-21.50/2.4 57X25-27/50
27-23.50/2.5 57X25-27/50
27-24.50/2.4 26.00-27
28" Multipieces 28-15.00/1.0 16.9-28
29" Multipieces 29-17.00/3.5 24.00-29
29-24.00/3.0 776/65R29 775/65R29
29-24.00/3.5 776/65R29 775/65R29
29-25.00/3.5 29.5R29
29-27.00/3.5 33.25R29
33" Multipieces 33-13.00/2.5 18.00-33
33-26.00/1.14
33-28.00/3.5 33.5R33 36/65R33
33-32.00/4.5 37.5 R 33
34" Multipieces 34-14.00/1.3
34-16.00/1.3 53X18-34
35" Multipieces 35-15.00/3.0 21.00-35
35-17.00/3.5 24.00-35
35-22.00/3.5 SOLID TYRE
45" Multipieces 45-36.00/4.5 45/65R45
49" Multipieces 49-17.00/3.5 24.00-49
49-19.50/4.0 27.00-49
51" Multipieces 51-22.00/3.0 SOLID TYRE
51-28.00/4.5 SOLID TYRE
57" Multipieces 57-29.00/6.0 40.00R57 46/90R57
63" Multipieces 63-36.00/5.0 53/80R63
63-41.00/5.0 55/80-63
63-44.00/5.0 58/80-63
Giant Mining
Rigid dump truck wheel rims Standard 5-piece
39" series: 39-32.00/4.0 for tire 40/65-39
45" series: 45-36.00/4.5 for tire 45/65R45
49" series: 49-17.00/3.5 for tire 24.00-49, 49-19.50/4.0 for tire 27.00R49
51" series: 51-22.00/4.5 for tire 30.00R51, 51-24.00/5.0 for tire 33.00-51, 51-26.00/5.0 for tire 36.00-51,
51-32.00/4.5 for tire 37.5-51, 51-40.00/4.5 for tire 50.00-51
57" series: 57-27.00/6.0 for tire 37.00R57, 57-29.00/6.0 for tire 40.00R57, 57-32.00/6.0 for tire 46/90R57,
57-32.00/6.5 for tire 48/95-57, 57-34.00/5.0 for tire 50/80-57
63" series: 63-36.00/5.0 for tire 53/80R63, 63-44.00/5.0 for tire 59/80R63
Giant Mining
Rigid dump truck wheel rims
Quick change 6-piece & 7-piece
51" series: 51-22.00/4.5 for tire 30.00R51, 51-24.00/5.0 for tire 33.00-51, 51-26.00/5.0 for tire 36.00-51,
51-40.00/4.5 for tire 50.00-51
57" series: 57-27.00/6.0 for tire 37.00R57, 57-29.00/6.0 for tire 40.00R57, 57-32.00/6.0 for tire 46/90R57,
57-34.00/5.0 for tire 50/80-57
63" series: 63-36.00/5.0 for tire 53/80R63, 63-38.00/5.0 for tire 53/80R63, 63-41.00/5.0 for tire 56/80R63
63-44.00/5.0 for tire 59/80R63

Ground Mining
Rigid dump truck wheel rims
standard 5-piece
25" series: 25-10.00/1.5 for tire 14.00-25, 25-11.25/2.0 for tire 16.00-25, 25-13.00/2.5 for tire 18.00-25
25-19.50/2.5 for tire 23.5-25, 25-22.00/3.0 for tire 26.5-25, 25-25.00/3.5 for tire 29.5-25
29" series: 29-25.00/3.5 for tire 29.5-29, 29-27.00/3.5 for tire 33.25-29
33" series: 33-28.00/3.5 for tire 33.5-33, 33-13.00/2.5 for tire 18.00-33
35" series: 35-15.00/3.0 for tire 21.00-35, 35-17.00/3.5 for tire 24.00-35

Ground Mining
Articulated dump truck wheel rims
 25" series: 25-19.50/2.5 for tire 23.5R25, 25-22.00/3.0 for tire 26.5R25, 25-25.00/3.5 for tire 29.5-25
29" series: 29-25.00/3.5 for tire 29.5R29
Underground Mining
Dump truck
25" series: 25-11.25/2.0 for tire 16.00R25, 25-13.00/2.5 for tire 18.00R25, 25-19.50/2.5 for tire 23.5R25
25-22.00/3.0 for tire 26.5R25, 25-25.00/3.5 for tire 29.5R25
29" series: 29-27.00/3.5 for tire 33.25-29
33" series: 33-28.00/3.5 for tire 35/65R33
Underground Mining
Hauler/Loader/ Support Drill Rig
15" series: 15-7.5 for tire 10.00-15
20" series: 20-7.0 for tire 9.00R20, 20-8.5 for tire 12.00-20
24" series: 24-8.5 for tire 12.00-24, 24-10.0 for tire 14.00-24
25" series: 25-14.00/1.5 for tire 17.5-25, 25-17.00/1.7 for tire 20.5R25, 25-13.00/2.5 for tire 18.00-25
25-22.00/3.0 for tire 26.5-25, 25-24.00/3.0 for tire 35/65-25, 25-25.00/3.5 for tire 29.5-25
29" series: 29-25.00/3.5 for tire 29.5-29
33" series: 33-28.00/3.5 for tire 35/65R33
39" series: 39-32.00/4.0 for tire 40/65R39
Light Construction
Grader/ Small loader/ Harvester
3-piece
20" series: 20-10.00VA for tire 14.00-20
21" series: 21-10.00/1.7 for tire 14.00-2, 21-18.00/1.7 for tire 24.00-21,
24" series: 24-8.00TG for tire 12.00-24TG, 24-9 for tire 1300-24TG, 24.00-10.00VA for tire 14.00-24
24-11.00 for tire 16.00-24
25" series: 25-10.00/1.5 for tire 14.00-25, 25-12.00/1.3 for tire 15.5-25, 25-14.00/1.5 for tire 17.5-25
25-17.00/1.7 for tire 20.5-25, 25-30.0TH for tire 67x34.00-25, 25-36.00TH for tire 66x44.00-25
25-44.00TH for tire 1250x44.00R25

Earthmover construction
Loader
3-piece IF
 25" series: 25-11.25/2.0IF for tire 16.00R25, 25-13.00/2.5IF for tire 18.00R25, 25-15.00/3.0IF for tire 21.00R25
25-17.00/2.0IF for tire 20.5R25, 25-19.50/2.5IF for tire 23.5R25, 25-22.00/3.0IF for tire 26.5R25
25-25.00/3.5IF for tire 29.5R25
Earthmover construction
Loader
25" series: 25-11.25/2.0 for tire 16.00-25, 25-13.00/2.5 for tire 18.00-25, 25-12.00/1.3 for tire 15.5-25
25-14.00/1.5 for tire 17.5-25, 25-17.00/1.7 for tire 20.5-25, 25-19.50/2.5 for tire 23.5-25
25-22.00/3.0 for tire 26.5-25, 25-25.00/3.5 for tire 29.5-25
29" series: 29-17.00/3.5 for tire 24.00-29, 29-24.00/3.0 for tire 30/65-29, 29-25.00/3.5 for tire 29.5-29
29-27.00/3.5 for tire 33.25-29
33" series: 33-13.00/2.5 for tire 18.00-33, 33-28.00/3.5 for tire 35/65-33,
35" series: 35-15.00/3.0 for tire 21.00-35, 35-27.00/3.5 for tire 33.25-35
39" series: 39-32.00/4.5 for tire 37.5-39
45" series: 45-36.00/4.5 for tire 45/65-45
49" series: 49-17.00/3.5 for tire 24.00-49
Rough Terrain Crane
25" series: 25-11.25/2.0IF for tire 16.00R25, 25-13.00/2.5IF for tire 18.00R25, 25-15.00/3.0IF for tire 21.00R25
25-17.00/2.0IF for tire 20.5R25, 25-19.50/2.5IF for tire 23.5R25, 25-22.00/3.0IF for tire 26.5R25
25-25.00/3.5IF for tire 29.5R25,
25-11.25/2.0 for tire 16.00-25, 25-15.00/3.0 for tire 21.00-25 25-17.00/1.7 for tire 20.5-25,
25-19.50/2.5 for tire 23.5-25 25-22.00/3.0 for tire 26.5-25, 25-25.00/3.5 for tire 29.5-25
29" series: 29-25.00/3.5 for tire 29.5R25
All Terrin Crane
25" series: 25-9.50/1.7CR for tire 14.00-25, 25-11.00/1.7CR for tire 16.00-25, 25-14.00/1.7CR for tire 17.5-25
25-17.00/1.7CR for tire 17.5-25
Reach Stacker/ Container Handler/ Rubber gantry crane
24" series: 24-8.5 for tire 12.00-24, 24-10.0 for tire 14.00-24, 24-10.00WA for tire 14.00R24
25" series: 25-11.25/2.0 for tire 16.00-25, 25-13.00/2.5 for tire 18.00-25, 25-15.00/3.0 for tire 21.00-25
33" serise: 33-13.00/2.5 for tire 18.00-33
35" series: 35-15.00/3.0 for tire 21.00-35
Straddle Carrier/Grider Carrier/ Launching Gantry
15" series: 15-9.75 for tire 355/65-15, 15-11.5 for tire 32x14.5-15
17.5" series: 17.5-6.75 for tire 235/75R17.5
18" series: 18-9.75 for tire 355/65R18
20" series: 20-10.00 for tire 14.00-20
22.5" series: 22.5-11.75 for tire 385/65R22.5
25" series: 25-11.25/2.5 for tire 16.00-25, 25-13.0/2.5 for tire 18.00-25, 25-15.00/3.0 for tire 21.00-25
25-17.00/2.0 for tire 20.5-25, 25-19.50/2.5 for tire 23.5-25, 25-22.00/3.0 for tire 26.5-25
35" series: 35-15.00/3.5 for tire 21.00-35
Aircraft Tug/ Shuttle bus
15" series: 15-6.5 for tire 8.25-15, 15-7.0 for tire 250/70R15, 15-9.75 for tire 355/65R15
19.5" series: 19.5-8.25 for tire 285/70R19.5
24" series: 24-8.5 for tire 12.00-24, 24-10.0 for tire 14.00-24
25" series: 25-10.00/1.5 for tire 14.00-25, 25-11.00/1.7CR for tire 445/95R25, 25-11.25/2.0 for tire 16.00-25
25-13.00/2.5 for tire 18.00-25
High load/ Highway speed/ Sand and more
9" series: 9-4.00E for tire 6.00-9
22" series:22-8.5 for tire 305/70R22, 22-17.00/2.0 for tire 20.5-22
23" series: 23-11.00/2.0 for tire 14.00-23, 23-18.00/2.0 for tire 24.00-23
24" series: 24-11.25/2.0 for tire 16.00-24
34" series: 34-16.00/1.5
37" series: 37-33.00/3.0
We can supply all kinds of steel wheel rims for many models which you can see below.
More information about us:
>> PU Machine/Polyurethane Machine/PU Foaming Machine/Polyurethane Foam Machine for Interior Decoration
>> Versatile Boat Trailer Roller Brackets for 8" 10" 12" Rollers
>> Indoor HD LED Display
>> Versatile Concrete Pump Machine for Extreme Environmental Adaptability
>> DU Oilless Bushing
>> 2024 Vift Manufacturer Self-Propelled Scissor Lift 3m 4m Electric Aerial Work Platform
>> IP44 Newest High Quality LED Grow Light LED Lighting
>> auto ac under dash universal type for all car model
>> 1000W 1500W 2000W Hand Held Fiber Machine Used Laser Welding with Wire Feeder
>> Premium Alloy Flange Gear Components for Bridge Cranes
>> Hot Selling Customized Universal Hydraulic Cylinder with Single Acting
>> 6t Output Hydraulic Crimping Pliers (YQK-70)
>> hydrogen manufacturing plant, green hydrogen power plant, hydrogen generating system
>> GM06 Stylish Ladies′ Pants Women′s Wide Leg Frayed Hem Denim Jeans
>> ISO Stainless Steel Sanitary Clamp for Polishing Fittings with Three Sections
>> China Chemical Manufacturer Na2s2o4 CAS: 7775-14-6 Sodium Dithionite 85%, 88%90% Price
>> Fully Automatic Production Line PP Nonwoven Disposable Surgical Doctor Cap Making Machine
>> Bulk 360 Swivel Hook Solid Wood Hanger, Coat Hanger Clothes Hanger
>> Oasis Impression Authentic German Craft Beer: Unique Flavor for International Buyers
>> 10 Tonne 12cbm Compactor Garbage Truck Municipal Cleaning Equipment Machinery Waste Management Vehicle
