Ruihang Automatic Pet Packaging Belt Plastic Steel Strip Production Extrusion Line

Product Description

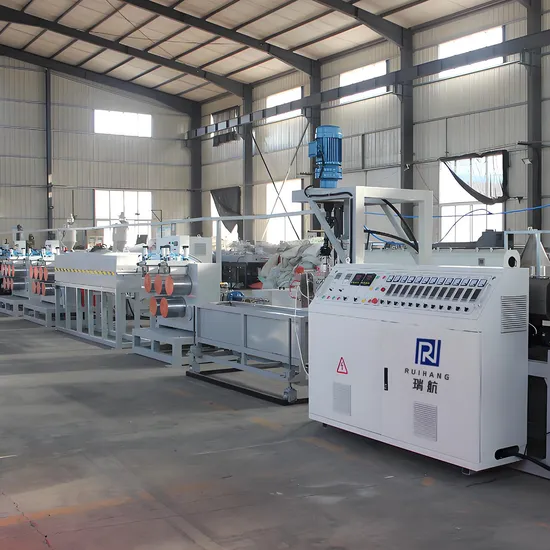

Ruihang Pet Packaging Belt Production Extrusion Line
Production line composition:
Extruder, mold, stretching machine, extended cooling water tank, oven, traction embossing unit, tape rolling machine'
Main features of the production line:
The production line can achieve high efficiency, energy saving and high yield.
It can meet different customer needs and produce one, two or four different specifications of equipment.
The water tank is made of stainless steel.
The operation is safe and convenient, and the performance of the entire production line is stable to ensure continuous production.
Features and applications of the products produced:
Strong tensile strength: Strong tensile strength, can withstand 0.5 - 8.5 tons of tensile force, can replace traditional steel belts.
Impact resistance: Better than steel belts to absorb impact energy, and will not loosen after the goods shrink or expand. It can remain loose for a long time after packaging, and can effectively absorb vibration energy during transportation, ensuring that the goods have excellent impact resistance during long-distance transportation.
Safety: Light and soft, no need to wear gloves to use. When cutting, there will be no flashing phenomenon, preventing harm to transportation workers and customers.
Main technical parameters:

Strap width(mm)	Strap thickness(mm)	Strap weight(gr/mt)	No of straps	Speed(m/min)	Production(kg/h)
5	0.5	1.6	6	120	70
9	0.6	3.2	6	120	138
12	0.6	5.3	6	120	240
15	0.6	6.6	6	105	250
15	0.8	8.8	6	78.9	250
19	0.85	11.5	3	120	250

Detailed Photos:
Raw material processing and extrusion system
Highly efficient pre-crystallization and drying system, the equipment can use 100% bottle flakes recycled materials to produce high value-added strapping.

Double column exhaust screen changing device

Embossing machine
Hydraulic control, can set the embossing roller pattern according to user requirements, with synchronous control embossing system, precise adjustment of the embossing roller up and down position and embossing intensity.

Heat setting
Special setting technology ensures the rapid setting of the tape products, prevents the PET tape from undoing its orientation after orientation, eliminates internal stress, and ensures the tape size accuracy and quality.

The winding part of this strapping production equipment:
servo winding machine and torque motor winding machine can be selected
