Professional Plastic Injection Molding Supplier

Product Description

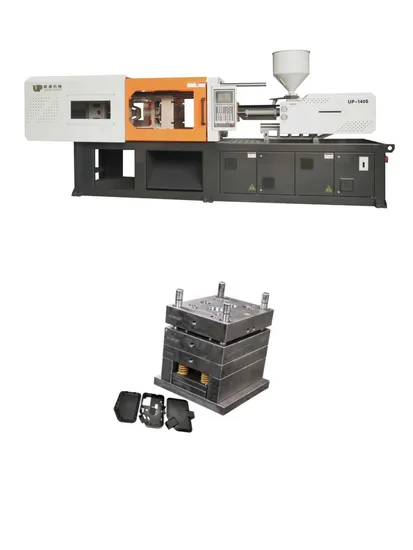

Ningbo Union Power Machinery Co., Ltd. - China Servo Injection Molding Machine
A. Modulus of Capacitance: The injection molding machine guide pillar (Green column) includes information on position, size, maximum allowable modulus of capacitance, and minimum closure thickness.
B. Nozzle Parameters: Details on spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture of the nozzle.
C. Code Mold Parameters: Information on code mold hole and slot size.
D. Ejection Mechanism: Includes ejection point position, ejector rod diameter, and optional ejection force and stroke.
E. Mold Opening Stroke and Maximum Opening Distance: Specifications on mold opening stroke and maximum opening distance.

Technical Parameters	Model UP-140T
Injection Unit	A	B	C
Screw diameter (mm)	38	42	45
Shot Volume (cm3)	215	260	302
Injection weight (g)	194	237	272
injection pressure (Mpa)	186	152	132
Screw speed (rmp)	215
Clamping Unit
Clamping force (KN)	1400
Open stroke (mm)	380
Max Mold height (mm)	450
Min Mold height (mm)	135
Space between tie bars(mm)	420*420
Ejector force (KN)	46
Ejector stroke (mm)	120
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	13(14)
Heating power (KW)	8.2
Machine dimension (M)	4.2*1.2*1.9
Machine weight (T)	3.4
Oiltank cubage (L)	190

---
