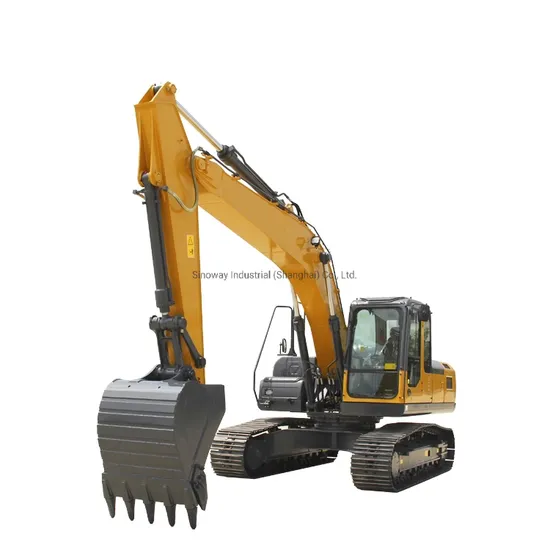

Good Price Shovel Excavator 23ton Hydraulic Tracked Excavator for Sale

Product Description

Main Features
Unmatched performance driven by the Cummins Engine enhances torque output with more power and breakout force at lower engine speeds.
Options for auxiliary hydraulic piping include bidirectional variable high flow line, an additional line for rotating attachments and also a single acting line. The quick coupler further ensures you get the most out of your machine by easily switching between a wide range of attachments to suit any application.
Hydraulic request signals detect activity, decreasing and increasing engine speed as required. Power is supplied only as needed, achieving optimum fuel efficiency.
The lifting arm, arm and bucket of reinforced design offer for the complete unit a higher adaptability to severe working conditions, and implements such as breaking hammer and grab bucket can be installed as options.
The cab, spacious, bright, pantoscopic and properly sealed, is equipped with 8-way adjustable seat, two-stage filtering heater & A/C system and three-stage silicone oil rubber shock absorber, providing a good damping effect and a favorable driving comfort.
The upper structure is strongly reinforced by the use of an H-beam in the high cross section of the main structure providing even weight distribution and increasing stability.The platform's collision protection system has been welded into place to improve its strength, rigidity and overall service life.
Product Show
Specifications

Engine
Model	Cummins
Type	Six-cylinder,water-cooled, turbocharged,mechanical injection
Rated power	112KW
Rated speed	2100rpm
Main Technical Specification
Operating weight	23000Kg
Standard bucket capacity	1.0 m3
Slewing speed	12.5rpm
Stick digging force	105KN
Bucket digging force	152.5KN
Travelling System
Travelling speed	0~5.7km/h
Grade ability	70%
Ground pressure	0.042MPa
Dimensions
Overall length	9540mm
Overall width	2990mm
Overall height of boom	3040mm
Overall height of cab	3040mm
Engine cover height	2300mm
Counterweight clearance	1070mm
Ground clearance	440mm
Upperstructure width	2740mm
Rear-end length/Slewing radius	2750mm
Overall track length	4160mm
Track length on ground	3370mm
Track gauge	2390mm
Track width	600mm
Boom slewing angle(L/R)	0 degree
Operating Scope
Arm length	2915mm
Max. cutting height	9945mm
Max. dumping height	7170mm
Max. digging depth	6562mm
Max. reach	9870mm
