US$50.00-100.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Digital Photo Frame
Resolution Ratio
1024*600
Port
USB/USB OTG/RJ45/TF Port/Antenna Port
CPU
Quadt Core Cortex A9, 1.6g, Rk3188
LCD Screen
IPS / LCD Panel LED Backlight
Application
Home Picture Frame, Advertising Display
Certification
Ce RoHS FCC
Transport Package
Packed by Carton
Specification
7" 10" 15" 18" 21" 32"
Production Capacity
50000/PCS Year
Product Description

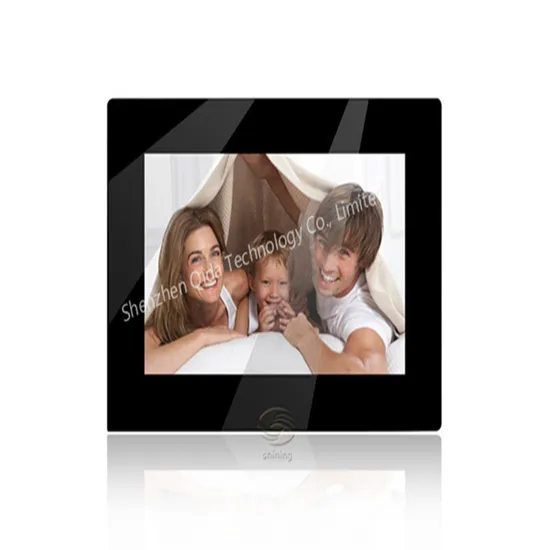

Digital photo frame PC or Digital photo frame android are usually a small size touch screen monitor built in with pc or android, with wifi.
The digital photo frame pc or Digital photo frame android sizes:
7" 8" 9" 10" 14" 15" 18.5" 21.5"
If you want the digital photo frame use as special areas, you may like to add some special functions, such as HDMI, USB, Camera, keyboard, 3G, 4G, wifi, wiping card….
Currently, digital photo frame are widely used in many applications:
Bus seats pillow digital photo frame.
Taxi pillow digital photo frame.
Chain stores digital photo frame advertising
Some digital photo frame with high stand for information checking and wayfinding..
And other uses.
Digital photo frame
| Specifications: |
| Panel |
| Display screen: | LCD panel LED backlight |
| Resolution: | 1280*800 or 1366*768 |
| View angle: | Full view |
| Brightness: | 350cd/M |
| Touch screen |
| 10 points Capacitive touch screen, I2C or USB port |
| Eletricity |
| Power: | 12V 4A, AC220V input, DC12V output, support 3C certification |
| LED: | Preposition LED power light |
| PC |
| System: | Windows 10 |
| CPU Processor | Intel Cherry Trail-x5z8300/z8350 |
| CPU frequency | 1.84GHz |
| GPU Processor | Intel HD Graphics |
| GPU frequency | 500MHz |
| Memory | LPDDR3 4GB |
| storage | eMMC 32GB/64GB/128GB(Optional) |
| LCD Display | support 1920*1200 |
| Wifi | 802.11 a/b/g/n |
| Bluetooth | Bluetooth4.0 |
| Camera | Front:2.0M |
| Speaker | Support |
| DC in | 12V/3A |
| I/O jack |
| Power LED | Support*1 |
| Earphones | 3.5mm stereo phone jack |
| MIC | 3.5mm MIC*1 |
| USB | Support*1 USB3.0, USB2.0 Support*3 inside |
| HDMI | Support*1 |
| COM RS232 | Support*1 |
| SATA | Support*2 |
| VGA | Support*1 |
| RJ45 | Support*1 |
| DC jack | Support |
| Material |
| Cabinet: | Aluminum alloy cabinet, Thickness:23.5MM, CNC, Round corner,gloss silver finish (option Metal) |
| Glass: | 3mm tempered glass, (Option: Custom any logo or pattern) |
| Back: | metal back, black |
Digital photo frame
| Specifications: |
| Panel |
| Display screen: | LCD panel LED backlight |
| Resolution: | 1280*800 or 1366*768 |
| View angle: | Full view |
| Brightness: | 350cd/M |
| Touch screen |
| 10 points Capacitive touch screen, I2C or USB port |
| Eletricity |
| Power: | 12V 4A, AC220V input, DC12V output, support 3C certification |
| LED: | Preposition LED power light |
| Android |
| System: | Android 4.4 |
| CPU: | quad-core ARM Cortex-A9 schema CPU,Main frequency 1.8G RK3188 |
| Flash memory: | NAND FLASH/EC 8GB |
| Memory: | DDR3 1G |
| Port: | USB/USB OTG/RJ45/TF Port/Antenna Port |
| Function: | with Signagelink information release system,Using B/S architecture,you can control the network terminal advertising machine via mobile network, WLAN,WIFI by anytime in anywhere |
| Supports all video, file, network streaming media format; |
| Support split screen, support combination and design program content; |
| remote control playback time, volume,monitor prograe and inter-cut,dibble seeding |
| Support for USB playback , USB update , USB upgrade function |
| Material |
| Cabinet: | Aluminum alloy cabinet, Thickness:23.5MM, CNC, Round corner,gloss silver finish (option Metal) |
| Glass: | 3mm tempered glass, (Option: Custom any logo or pattern) |
| Back: | metal back, black |
| | SH1162WF-T |
| CPU: | Quadt core cortex A9, 1.6G, RK3188 |
| RAM: | 1GB |
| Internal memory: | 8GB |
| Operation system: | Android 4.4 or above |
| Touch screen: | 10 point apacitive touch |
| Panel: | 11.6" LCD panel |
| Resolution: | 1366*768 |
| Contrast ratio: | 500 |
| Luminance: | 220cd/m2 |
| Aspect Ratio: | 16:9 |
| Wifi: | 802.11b/g/n |
| 3G Dongle: | 3G usb dongle ext. |
| Card slot: | SD |
| USB Device: | USB*3 |
| USB Host: | Micro USB OTG |
| Power Jack | DC power input |
| Earphone: | 3.5mm earphone |
| Video Format: | MPEG-1,MPEG-2,MPEG-4, H.263,H264,VC1,RV etc, support up to 1080p |
| Audio format: | MP3/WMA/AAC etc |
| Photo: | jpeg |
| Speaker: | 2×1.5W |
| Application: | MSN/Skype/Facebook/Twitter/Youtube/E-mail/google map etc |
| Adapter: | Adapter, 12V/2A |
| User manual: | Yes |
| Bluetooth | Bluetooth4.0 |
| HDMI | HDMI output |
| Battery | 5000mah/3.7V |
| Camera: | 2.0M/P, Front camera |
| RJ45: | Rj45 with POE |
| Ethernet: | 10M/100M ethernet |
| VESA: | 75×75mm |
| Active area: | 256.125(H)×144mm (V) |
| Working temp: | 0-50 degree |
>>
