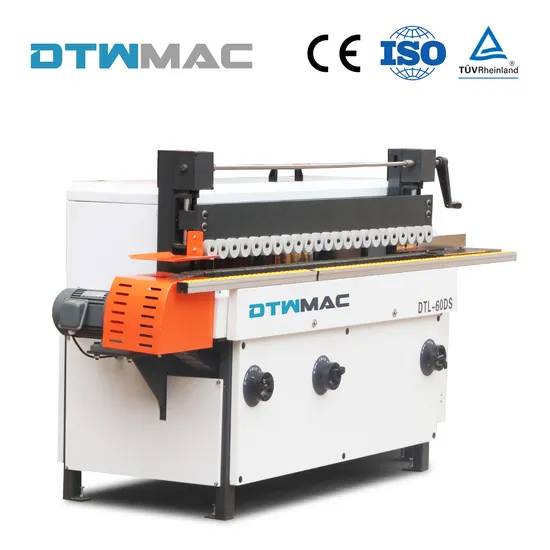

DTWMAC Wood Edge Grinding Machine for Veneer Side

Product Description

Detailed Photos
Product Parameters

Brush Roller Diameter	300mm
Sand Roller Diameter	180mm
Roller Height	150mm
Min Working Width	100mm
Min Working Length	150mm
Working Thickness	5-40mm
Sandpaper Grade	120#-600#
Lifting Way	Electric Control
Conveyor Motor	0.75KW
Lifting Motor	0.55KW *3
Main Motor	0.75KW *3
Total Power	4.65KW
Conveyor Speed	Inverter Control
Voltage	380V/50HZ/3PH
Roller Speed	Inverter Control
Dimension	2500×900×1200mm
Wooden Case Size	2550x920x1360mm
N.W.	540KG
G. W.	620KG

Product Description
* DTWMAC side sanding machine DTL-60DS is mainly for the grinding or sanding of different wood materials such as aolid wood, plywood, MDF, veneer board, etc.
* The speed of the rollers is adjustable with frequency inverters, so it can use different speed according to the hardness of the wood materials.
* The rollers can move from side to side so that to make sure the perfect sanding effect.
* Imported Riken sandpaper is good quality and more durable.
* It is more beautiful and will not rust with high temprature powder painting.
* Different abrasive materials for your choice and we support customization.
Packaging & Shipping
FAQ
1. Do you offer installation?
Our brush sanding machines are almost assembled and adjusted before package. It's very easy to install the machines at your workshop when you receive them. Videos guidance and English manuals can help you in installation easily. 2. Where can we buy the replacement parts?

Most of the parts for brush sanding machines are ready in stock. They can be sent to you directly from our warehouse with cost price. 3. What technical support do you offer?

* Technical support by phone, email, video * English version video and manual * Engineer available to service machinery overseas 4. Can you customize the machine for our products?
All brush sanding machines can be customized according to your requirement not only the appearance but also the inner structure.

---
