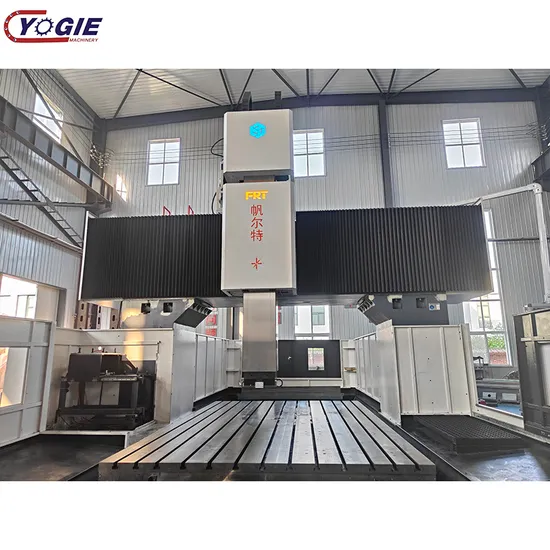

Frt-4032 High-Precision Knd System Large CNC Double Column Gantry Milling Machining Center

Product Description

Henan Front fixed beam and column CNC gantry boring and miling machine inherits the advantages of traditional gantry machine tools such as strong rigidity, symmetrical structure, andstrong stablity, and adopts innowative design concepis.All products adopt PROrE three-dimensionalc design. The main structure ofthe machine toolis unifom Using finite element analvsis,By opimizing the reinforcement structure and disitributing the quality reasonably, the whole machine has heavy load,strong rigidity, good dynamic characteristics, meets the requirements ofhigh-power and high-precision cuiting, and itis suitable for the processing ofsuper large and ultra heavy parts. Product Description
Product Parameters

Technical specification		FRT-SP1514	FRT-SP2218	FRT-SP3018	FRT-SP4025	FRT-SP6035
Travel
XYZ axis travel (worklable left and right movement)	mm	1500/1600/700	2200/2000/1000	3000/2000/1000	4000/2700/1000	6000/3700/1200
Distance of spindle nose andworking table surface	mm	200-900	200-1200	200-1200	300-1300	400-1600
Gantry width	mm	1400	1800	1800	2500	3500
Guide rail		Two linear guide rail,one hardened rail
Work Table
Table size	mm	1500X1200	2200X1500	3000X1500	4000X2000	6000X2500
The maximum load capacity of the worktable	T	3	5	8	15	20
Spindle
The spindle taper (model, sleeve diameter)		BT50
Thespindle motor power	kw	11	18	22	26	30
Spindle speed	rpm	6000
Accuracy
Precision of position	mm	0.01/1000
Accuracy of repeated position	mm	±0.01
Size
Netweight(approx.)	T	15	20	30	40	75

Company Profile

FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

---
