Sanitary Grade Stainless Steel 304/316L Cartridge Filter Housing

Product Description

Product Description
Material: SUS304/316L
Connection Type: Screw Thread Or Flange
Seal Material: Buna/Silicone/Viton
Seal Type: Ladder-Type Seal Ring
Apply To Strainer: 10"/20"/30"/40"plane/222Plug-in
Design Pressure: 0.8Mpa
Surface Disposal: Sandblast or Polishing
Mounting Legs With Adjustable Height
Product Features
- Food grade stainless steel liquid filter housing pp filter core oil filter housing
- Can be applied for most particles so it is broadly for precision filter and sterilization
- The material of the filter core is PP, PTFE, nylon, SS304/306L
- Optional hydrophilic (suitable for gas) or hydrophilic (suitable for liquid)

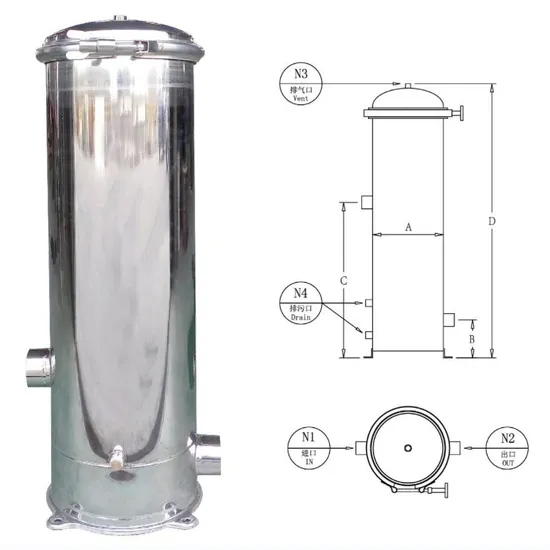

Product Parameters

Model/Dimension	Amm	Bmm	Cmm	Dmm	N1	N2	N3	N4	Flow	Volume
RHLX-3-10	Φ200	250	70	515	RC1"	RC1"	RC1/4"	RC3/8"	1.5m3/H	10L
RHLX-3-20	Φ200	300	70	735	RC1"	RC1"	RC1/4"	RC3/8"	3m3/H	18L
RHLX-3-30	Φ200	500	70	1005	RC1"	RC1"	RC1/4"	RC3/8"	4.5m3/H	26L
RHLX-5-10	Φ200	250	70	515	RC1"	RC1"	RC1/4"	RC3/8"	2.5m3/H	10L
RHLX-5-20	Φ200	300	70	735	RC1"	RC1"	RC1/4"	RC3/8"	5m3/H	18L
RHLX-5-30	Φ200	500	70	1005	RC2"	RC2"	RC1/4"	RC3/8"	7.5m3/H	26L
RHLX-5-40	Φ200	600	70	1280	RC2"	RC2"	RC1/4"	RC3/8"	10m3/H	34L
RHLX-7-10	Φ219	250	70	520	RC1"	RC1"	RC1/4"	RC3/8"	3.5m3/H	12L
RHLX-7-20	Φ219	300	70	740	RC1"	RC1"	RC1/4"	RC3/8"	7m3/H	22L
RHLX-7-30	Φ219	500	70	1010	RC2"	RC2"	RC1/4"	RC3/8"	10m3/H	32L
RHLX-7-40	Φ219	600	70	1285	RC2"	RC2"	RC1/4"	RC3/8"	14m3/H	42L

Product Application
Food and beverage industry: beer, wine, wine, sake, liquor, wine, fruit juice, bottled water, tea drinks, soy milk, syrup, dairy products, food additives, water filtration to clarify the process and CIP. Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered. Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration. Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials and solvent filtration Textile/printing and dyeing/paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter. Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration. Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration. The electronic and electroplating industry: a variety of plating solution and water filtration. Machining industry: a variety of cutting fluid, coolant and cleaning liquid filtration.
Etc...
Certifications
Packaging & Shipping
Company Profile
FAQ

Q: Are you manufacturer?

A: Yes, we are a manufacturer with over 15 years of history, address is located in Fengxian District, Shanghai.

Q: Can you provide sample? Free or chargeable?

A: Yes, we can provide free sample for filter elements, for filter housing need chargeable.

Q: Dose the product support customization?

A: We have a professional team of engineers, can provide customized solution plan according to customers need.

Q: What is the payment terms?

A: Usually we support the T/T.

Q: How to choose the shipping way?

A: We cooperate with professional logistics companies, and customer also can choose own freight forwarder.

---
