Heavy Duty Bed-Type Milling Machine X716 X715

Product Description

Product Description

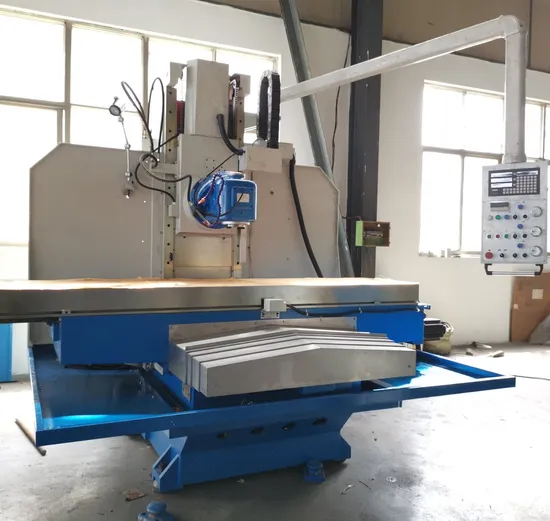

Heavy duty bed-type milling machine X716 X715
1.Variable spindle speeds in 2 steps
2.Ball screws on X Y and Z axes
3.Servo motors on X Y and z axes
Welcome your inquiry !!!
Detailed Photos

In order to realize the low-speed and high-torque function of the spindle, the machine sets up 2-stage automatic transmission and spindle servo motor. The low speed is 6~300r/min and the high speed is 30~1500r/min.

The external milling head consists of two 45 ° slide rests, which can turn 360 ° in the left and right direction and 0~90°in up and down direction. The combination of the spindle center line can rotate at any angle in front hemisphere arbitrary space, so that the tool is milled.
Machine tool spindle taper hole is of the ISO50; Processing materials includes steel, cast iron and non-ferrous metal, which can be milled at ordinary speed, can also be milled in high-speed or high-speed & high-intensity used with carbide tools. It is ensured sufficient rigidity under the rated load of the machine tool.
It is not only suitable for large batches production, but also suitable for single-piece and small batches production, machine repair workshop or mold workshop.
Standard automatic lubrication
It is not only suitable for large batches production, but also suitable for single-piece and small batches production, machine repair workshop or mold workshop.
Product Parameters

Specifications	Unit	X715	X716
Spindle hole taper	mm	7:24 ISO50	7:24 ISO50
Spindle speed range	r/min	Variable 6-300, 30-1500	Variable 6-300, 30-1500
Distance between spindle axis and column guideway	mm	610	8-660
Distance between spindle nose and table surface(V)	mm	0-650	0-700
Distance between spindle axis and table surface(H)	mm	8-660	8-660
Table size	mm	2100*500	2500*600
T slots	mm	4/20/100	5/20/100
Table travel-X	mm	1500	1800
Table travel-Y	mm	650	700
Table feed-X/Y	mm/min	2.5-3000	2.5-3000
Table feed-Z	mm/min	2.5-2500	2.5-2500
Table rapid feed X/Y/Z	mm/min	6000/6000/3000	6000/6000/3000
Main motor power	Kw	11	11
Torque of X/Y/Z axis AC servo motor	Nm	18/23/18	18/23/18
Cooling pump motor power	w	90	90
Overall size	mm	3220*2420*2800	4380*2520*2800
weight	kg	7300	9000

Certifications
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Machine packed with plywood case and steel pallet.


Company Profile
Shandong XILI Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.Hope we can built long-term business relationship with you.
Our customers
FAQ
1. What is the MOQ ?
Our minimum order quantity is 1 set.
2. What is the payment term ?
T/T, 30% advance payment before machine production, 70% balance payment before machine delivery.
30% T/T advance payment, and 70% balance payment by Irrevocable LC at sight.
3. What is your trade terms ?
FOB, CIF, CFR,EX Work.....all are acceptable.
4. How long is the guarantee ?
12 month after machine delivery from factory.
5. How can i start the order ?
You could contact here in made in China, or contact by


If you need any further information, feel free to contact us.

---
