Sdhx2113 Commercial Wood Chipper Factory Direct Sale Farming Wood Chipper Machine Price

Product Description

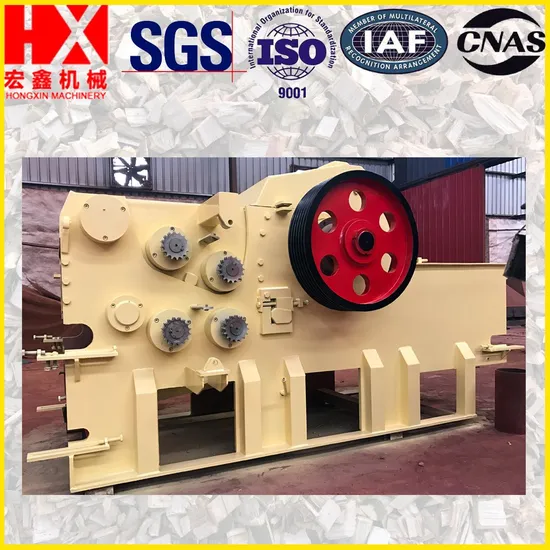

Product Description Wood drum chipper machine is a kind of special machine to slice the wood for the production of high-quality wood chips.
It is a kind of advanced crushing machine based on the advantages of many other crushers.
It is developed by using the theories of lashing, shearing, impacting, grinding.
It is mainly used to process various logs, log branch, veneer, bamboo, cotton stalk and other wood fiber into standard size chips. The chips could be used to produce particleboard, MDF, HDF, OSB, OSSB, pulp and paper making.
It has features as follows: 1) Uniform chips. 2) Low noise. 3) No pollution. 4) Simple operation. 5) Convenient maintenance.
It is one kind of special equipment for producing wood chips, widely used in the raw material preparing process in the factories of flakeboard (shaving board/particle board), fiberboard, papermaking and wood chips making plant. Small drum type wood chipper is the best equipment for factory's laboratory preparing material.Raw material for Drum type wood chipper cutting is mainly small diameter wood, lumbering remains (such as branches, twigs, tres s etc) and woo dworking remains (such as slab, plank, log core, waste veneer etc). It also can be used to chip non-lignin raw material (such as flax pole, bulrush, bamboo) The machine base is a welding structure with high strength steel plate serving as a support of the whole machine.
The knives (2,3 or 4) are installed to the roller via clamping plate by special knife bolts. The upper feed rollers assembly, with the help of hydraulic system, can float up and down over the material to be cut within certain range, according to the thickness of the material. Wood chips are discharged from the bottom of the machine after passing through screen holes, oversized chips will be re-chipped in the machine.
Hydraulic system: the oil pump supplies the cylinder with pressure oil, and open the drum cover for easy knife change; and lift the upper feed roller to facilitate the adjustment of the clearance between rotor knives and bed knives.
Advanced features 1. Adopted to a variety of raw materials: Our drum chipper has a wide range of adoptability in cutting wood and non-wood materials
2. Strict quality control in entire process, which start from design, manufacture to after sale service: Decades of experience to manufacture chipper, and strict industry standard. Selected raw materials, Strict quality control to the outsource fittings. Electric elements, hydraulic element are high quality brands at home and abroad. Large precise equipment ensures us manufacturing quality chipper.
3. Lower operating cost to the users: The design ensures the chipper can be faster and easier to maintenance, reduce operating cost. SCOPE OF SUPPLY BY SUPPLIER:Complete unit with:- Integrated base frame- Rotor with knives fastened- Counter knives- Feeding system with pairs of groove rollers on top and bottom- Driving device including motors and gear boxes- V-belt transmission and pulley- Hydraulic system for shock absorber- Special tools facilitating installation and maintenance, such as torque wrench, etc.- Mesh screen- Safety shell
SCOPE OF SUPPLY BY BUYER:- Hydraulic oil
- Nitrogen
- Connecting chute based on seller's principle drawing
- Cables and wires connected to motors and junction boxe Detailed Photos Picture after complete installation
Product Parameters Parameters

Model	HX216	HX218	HX426	HX428
Blade diameter (mm)	650	800	650	800
Blade quantity (piece)	3	3	6	6
Screen size	Φ 50	Φ 50	Φ 60	Φ 60
Input size (mm)	540x240	680x310	1250x250	1250x310
Blade rotational speed (rpm)	590	650	600	650
Rate of feeding (m/min)	38	35-38	38	38
Max material diameter (mm)	220	300	240	300
Wood chip length (mm)	30-50	30-50	30-80	30-80
Capacity (tph)	6-8	10-12	8-10	10-12
Main power (kw)	55	110	110	132
Feeding motor (kw)	3+4	5.5+4	5.5+5.5	5.5+7.5
Discharging motor (kw)	3+3	3+3	4+5.5	4+5.5
Oil pump motor (kw)	1.5	1.5	1.5	1.5
Feeding conveyor length (m)	4	4	4	4
Discharge conveyor length (m)	10	10	10	10
Weight (t)	4.5	7	8.2	10.4
Main machine dimension (m)	3x1.7x1.7	3.3x2.15x1.75	3.4x2.4x1.6	3.3x2.65x1.75
Delivery	1x20'GP	1x40'GP	1x40'HQ	1x40'HQ

Model	400A	400B	400C	400D
Rotor diameter (mm)	650	650	650	650
Screen size (mm)	50	50	50	50
Blade quantity (piece)	3	3	3	3
Screen size (mm)	Φ 50	Φ 50	Φ 50	Φ 50
Feed roll	Single	Two	Single	Two
Input size (mm)	680 x 420	680 x 420	1000 x 420	1000 x 420
Blade rotational speed (rpm)	720	720	720	720
Max material diameter (mm)	400	400	400	400
Output size (mm)	30-50	30-50	30-50	30-50
Capacity (tph)	8-10	8-10	10-12	10-12
Main power (kw)	90	90	132	132
Weight (t)	7	7.5	8.5	9
Main machine dimension (m)	3 x 1.85 x 2	3 x 1.85 x 2	3 x 2.15 x 2	3 x 2.15 x 2
Delivery	1x40'HQ	1x40'HQ	1x40'HQ	1x40'HQ

Model	HX2110	HX8210	HX2113	HX6213
Rotor diameter (mm)	1000	1000	1300	1300
Feed roller qty (piece)	4+4	4+4	4+4	4+4
Max wood diameter (mm)	300	500	380	500
Input size (mm)	700 x 1050	600 x 1400	600 x 1000	550 x 1480
Blade qty (piece)	8	8	8	8
Bottom knife quantity (piece)	2	2	2	2
Screen mesh size (mm)	60 x 60	60 x 60	60 x 60	60 x 60
Main motor power (kw)	200	250	315	315
Feed conveyor length (m)	5	5	5	5
Discharge conveyor length (m)	10	10	10	10
Capacity (TPH)	10-15	15-25	20-30	20-40
Container delivery	1x40FR	1x40FR + 1x20GP

Control box Company Profile Shandong Hongxin Machinery is a professional manufactory of log debarker, wood chipper, brush chipper, horizontal grinder, tub grinder, hammer mill, pellet mill etc in China with more than a decade history, and is capable of designing complete production line according to customers' needs.
Shipment
Machine working sites
Output chips photo Certifications FAQ Q1:Are You Trading Company or Factory?
Shandong Hongxin Machinery is a Factory with 31 years experience in Machinery Manufacturing,we provide you competive Factory Price
and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
We has people special for after-sale service,if customers outside China have problems when machine working,just feel
free to send us the picture or video to show us,we will give you solutions in 24hours.
Q5:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.

---
