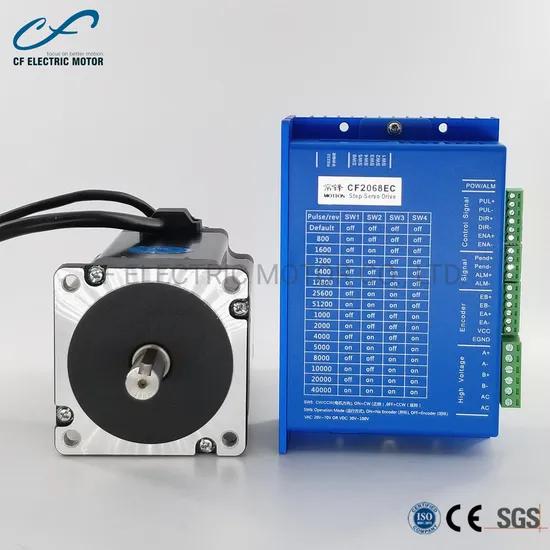

2-Phase NEMA34 Easy Servo 86mm Closed Loop Stepper Motor Kit for CNC

Product Description

2Phase 86mm 1000Encoder Nema34 Closed Loop Stepper Motor Kit
Easy Sevo Motor 34CF Series High Torque Low Vibration Motor Kit
Easy Servo Motor General Specification
Stepper motor Nema34 Data drawing is as following. If you have special requirements, pls. contact us.
Stepper Driver Part
Specification:
Model CF2068EC is the successful development of a new closed loop stepper motor driver based on more than 10 years of experience in stepper and servo R&D.
Using the latest special motor control dual-core DSP chip and the application type vector closed-loop control algorithm, thus overcoming the lose step problems of the open-loop steppermotor, at the same time, it can obviously improve motor high speed performance, reduce the degree of fever and the high school low speed vibration of motor, so as to improve the processing speed of the machine and precision and reduce the energy consumption of the machine. In addition, when the motor is continuously overloaded, the driver will output an alarm signal, with the same reliability as the AC servo system.
Of course, the installation size of the motor is fully compatible with the traditional two-phase 86 series stepper motor. The traditional stepper drive scheme is easy to upgrade, and the cost of the traditional stepper motor is not much higher than that of the open-loop stepper motor, which is only equivalent to 30-50% of the traditional AC servo system.
Use Environment and Parameters

Cooling type	Nature Cooling or external radiator
Use Environment	Usage occasion	Try to avoid dust, oil fog and corrosive gas
	Temperature	0ºC-50ºC
	Humidity	40-90%RH
	Vibration	5.9 m/s2 Max
Storage Temperature	-20ºC-+80ºC
Net Weight	Approx. 570gsm

Dimensions(mm):
More Information of the driver, pls. click the link here:
https://cfemotor.en.made-in-china.com/product/dOZJIwvAiDkF/China-2-Phase-CF2068ec-Closed-Loop-Stepper-Motor-Driver-for-NEMA34-Step-Servo-Motor-Drivve.html
Application:
Our stepper motor and driver products are mainly used in making Laser Engraving Machine, Marks printing machine, Garment Cutting machine, Automatic Screw Locking Machine, Ultrasonic Belt Cutting machine and etc.
Packing:Hard cardboard or wooden box with foam inside.
Shipping:Normally the delivery time is within 10 days according to customer's choice or ship by the best express company to the destination.
Delivery:1.with over 17 years of manufacturing experience, any type of customizing is available.2.with perfect service system, we can provide you with first class pre and after sale service.3.we have enough storage of each type of products, with first class packaging and shipping, make sure accurate delivery.4.professional sales consultants give you all answers about our proucts.
Certificate:
FAQ:
Question1: What is your service time:
Answer: 24 hours online service. Email will be replied within 12 hours.
Question2: What about your products' warranty?
Answer: 1 year. For sea orders, the warranty is 15 months.
Question3: Do you have any certificate?
Answer: Yes we have. Our factory passed ISO9001 and SGS verified. All motors have been approved by CE.
Question4: Do you offer ODM and OEM Service?
Answer: Yes. ODM products according to customized design and specification as well as OEM products.
Question5: What is the delivery time?
Answer: For samples, 10-30 days according to the differnet produced difficulty. For bulk, normally 20-30 days. For customized order, the delivery can be negotiated.

---
