Sqare Tube Hollow Pipe Hot Press Wood Core Veneer Dryer of Plywood Machine

Product Description

Product Description

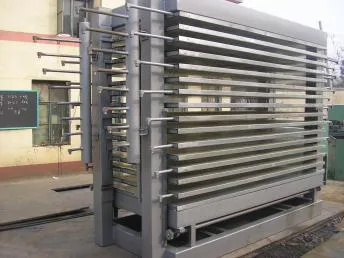

CORE VENEER DRYER

item	parameter
max pressure	50T 2X50mm cylinders Max. working pressure: 18MPa
total working openings	20
working platen size	1300*2700*40mm Tube size: 40*60mm
total power	3.0kw
overall size	3100*1300*2200mm
weight	4500kg
opening distance	100mm

SOLID PLATE HOT PRESS DRYER

item	parameter
Nominal Pressure	200 Tons
Working oil Pressure	18-20 mpa
Frame thickness	30mm
Top beam (mm)	600
Bottom beam (mm)	600
Middle beam	350
Hot Press plate (mm)	2700*1370*41mm With engraving net design
Opening	15
plate number	16
Layers distance	70mm
Heating method	Steam or heating oil
Board input	8' side
Hydraulic pump With simultaneous closing system	plunger pump: 200L/min+7.5kw motor+5.5kw
Control method	Automatic control panel
Main Cylinder	2*180mm Wuxi
Cylinder working distance	1050mm
Close speed	Approx. 20 seconds
Weight	Approx. 25,500 Kgs
Overall dimensions (mm)	3550*1370*3850

MESH DRYER

item	parameter
Working width	2650mm
Working layers	2
Length of heating section	8×2000mm=16000mm
Length of cooling section	1×2000=2000mm
Total power	73.2kw
Transport motor	5.5×2=11kw
Heating motor	7.5×8=60kw
Cooling motor	2.2×1=2.2kw
Veneer transportation speed	3~40m/min
Heating medium	Heat conduction oil
Drying temperature	150~180ºC
Oil boiler	1,200,000kcal/h
Veneer density	~590kg/m³
Available veneer thickness	0.3~1mm
Veneer initial moisture content	65%
Veneer final moisture content	10±2%
Drying capacity	1.5~1.8m³/h
Load ratio	85%
Center distance of roller	500mm
Top press type	Spring 14×2.5
Hole width (mesh)	10×20×2650mm
Mesh tracking system	Infrared sensor and stroke switch
Overall dimension(L*W*H)	23300×4330×2900mm
Front veneer conveyor	6800mm
Back veneer conveyor	6800mm

Packaging & Shipping

Workshop Processing

Company Profile

Weihai Reliable Imp&Exp Corp., Ltd is located in Linyi city, Shandong province, China, where is famous for the wooden panels and woodworking machinery. Our company was established in 2004, and have been engaged in the manufacturing and supply of woodworking machines since then, Including plywood production machinery, Particle Board production machinery (Linyi Factory), short cycle lamination machinery (Wuxi Factory) and other relevant machinery, and our customers are coming from all round the world, like India, Vietnam, Indonesia, Bangladesh, Sri Lanka, Saudi Arabia, Malaysia, Iran etc.
Our company has more than 20 experienced mechanical and electrical engineers, and they mainly focus on the research and development of the woodworking machinery. Meanwhile our factories are fully equipped with advanced lathe machine, grinding machine, planner and welder, which together contribute to the high precision machinery. Also we have a very strong and experience after-sale team, they are doing all commissioning and maintenance work for our customers.
Our company culture is "Quality is our for-ever goal, after-sale Service is our priority, win-win with customers", and we would like to cooperate with the friends from all around the world.
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

---
