1000kg/Hr PE PP Film Pet Bottles HDPE Bottles Box Barrel Waste Plastic Recycling Washing Plant

Product Description

1000kg/hr PE PP Film Pet Bottles HDPE Bottles Box Barrel Waste Plastic Recycling Washing Plant
Product Description
HDPE Plastic Washing Recycling Machine is used for recycling the waste HDPE/LDPE/PP/PE bottles, and buckets, hollow containers and so on. after that the flakes can be used to make granules directly or some other use. The whole line is full automatic and of high effciency. Low noise and easy operation.

>>HDPE Plastic Washing Recycling Machine is one of the main recycling series of Elant machinery. This system has smart modular design aiming at blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling.

>>Including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove ferrous and nonferrous metals, sand, oil, glue, paper and many other different contaminants efficiency.

>>You can get a different module combinations design from Elant according to your requirements and material's condition. In range of different raw materials, we provides 400-3000kg/h economy and high-level production lines with different configurations.

Working processing of Plastic Scrap Washing Machine:

>>After getting waste plastic raw material, elant Technicians will study and analysis the main contaminants to provide a proper solution to remove most of the impurities by mechanical, chemical, physical and other principle.

>>Main process of whole project including pretreatment of raw material → crushing → washing → drying → package → granulation.

How it works?

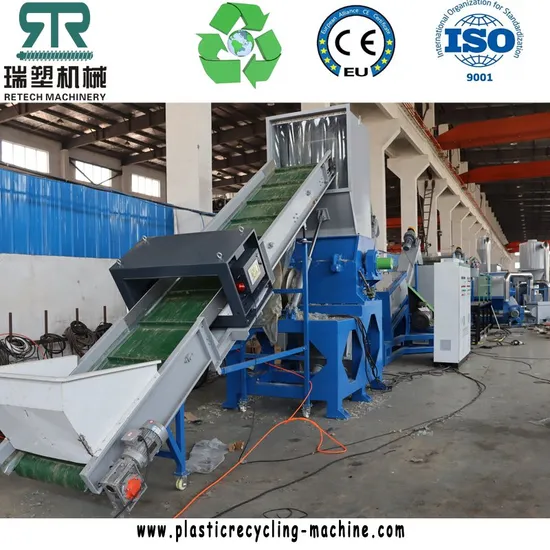

Waste plastic HDPE bottle flakes crushing washing recycling machine line consists of conveyor, crusher (grinder), high-speed friction washer, floating washer, dewatering machine, control cabinet, and other components. Firstly waste plastic (classification), crushing (torn), then friction washing, floating washing, and finally drying.

Components List of the HDPE Recycling Machine:

S/N	Item Name	Function/Remark
1	Conveyor Belt	Feeding material
2	Wet Crusher	Crushing the material into small size
3	Friction Washing loader Machine	Washing out the sand, soil and loading the material
4	1st Floating Washing Tank	Floating washing separate the sand, soil and other dirties
5	Screw loader	Loading up material to next process
6	High speed friction washer	Remove the humidity from the flakes
7	2nd Floating Washing Tank	Floating washing separate the sand,soil and other dirties
8	Screw loader	Loading material and drain out water from material
9	Horizontal dewatering machine	Remove the humidity from the flakes
10	Hot air drying system	Drying the flakes
11	Collecting Silo	Collecting material
12	Electricity Control box	Control the line on/off
13	Free Spare Parts	Optional

Detailed Photos
Product Parameters

Models	Capacity	Total Power	Workers
TSWL500	500kg/h	95~150KW	1~2
TSWL1000	1000kg/h	180~250KW	2~3
TSWL2000	2000kg/h	280~380KW	2~3

Certifications
Packaging & Shipping
Q&A about recycling machines:
1. What is the function of the PE PP film washing recycling machines?
The PE PP film washing recycling machinery is used to recycle and process the PE agriculture film, PE bags, shopping bags, beverage bags, PP woven bags, and some other soft material etc…
2. Where does it collect the waste material for the PE PP film washing recycling machines?
The waste mater is gotten mainly from agriculture film, city rubbish and plant in bale package or separated. They are with much dirties, such as the earth, soil, sand, stone, glue, grass, oil, and some other dirties.
But by our many years experience to manufacture the washing line, we can promise to wash the material clean enough to take the washed material into the extruder to make granules. We have our special design to guarantee this point.
3. What are main parts of the PE PP film washing recycling machines?
The following is a standard structure of the PE PP film washing recycling machinery:
Belt conveyer--- crusher with water--- screw conveyer--- floating washer--- screw conveyer--- high speed friction washer--- high speed friction washer--- screw conveyer--- horizontal centrifugal dewatering machine (or squeezer)--- drying system 1--- transition hopper--- drying system 2--- storage silo--- operating panel
The up is a standard structure of the line, we can adjust it to remove some parts or add some parts due to the situation of the material or customers' requirements.
4. What capacity of the PE PP film washing recycling machinery?
300-1000kg/h for single washing line
5. What power of the PE PP film washing recycling machines?
150kw~480kw
6. How much water does it need of the PE PP film washing recycling machines?
3~8T per hour
7. How large space does it need for a PE PP film washing recycling machines?
100~400 square meters, the whole line could be installed by straight, "L" shape or "U" shape. We could design how to instal the machines due to the space of your factory.
8. What is the condition of the final products from the PE PP film washing recycling machines?
The size of final flakes will be 50~100mm, and final moisture level of film flakes will be lower than 5%.
The PP PE flakes can be taken directly to the granulating/pelletizing line to make granules/pellets.
9. What is material of the PE PP film washing recycling machines?
The parts contacted with water are made of stainless steel SUS 304 or customized.
10. What certifications do you have for the PE PP film washing recycling machines?
We have CE and ISO9001 certification for the entire PE PP film washing recycling machines.
