US$1.03
5,000-7,999 Square Meters
US$1.01
8,000-8,999 Square Meters
US$0.98
9,000+ Square Meters
Basic Info.
Model NO.

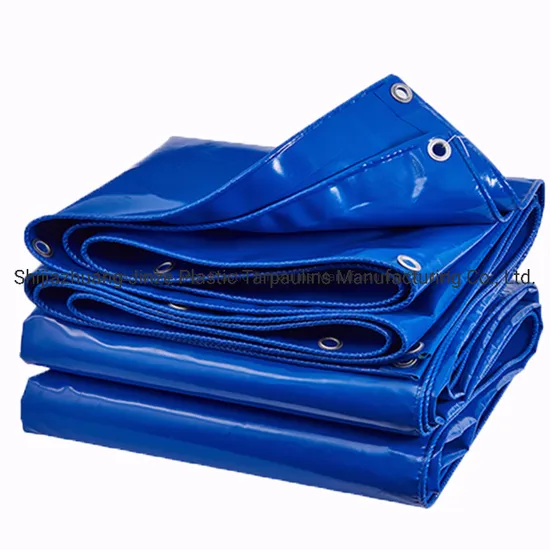

PVC Coated Tarpaulin
Color
Red, Blue, White, Green and Customized
Applications
Transportation Textiles
Gram Weight
300GSM-1500GSM
Transport Package
Hard Tube or PE Bag
Specification
Lacquered, Anti-UV, Anti-Mildew, Anti-Static
Production Capacity
100000sqm/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Advantages:
1. Nano PVC Calcium, mixing more than 2 hours. Strict control on the thickness of coating;
2. Breaking strength can reach more than 6000N/5cm
3. Anti-Scratching; good adhesion, 5 years' outdoor lifetime or more.
4. All colors available, can be customized with PVDF coating, anti-cold, anti-UV, anti-aging..
Data sheet
| Inspection item(Unit) | Normal Value and Allowance | Experimental value | Reference standard |
| Mass per unit(g/m²) | ≥400 | 443 | GB/T4669-2008 |
| Hydrostatic pressing(kPa) | ≥50 | ≥50 | FZ/T01004-2008 |
| Resistance to blocking | Tolerance to mild adhesion | Non-adhesion | FZ/T01063-2008 |
| Resistance to temp.(-25°C×3min) | Non-delamination, non-break | non-break | FZ/T01007-2008 |
Breaking strength (N/5×20cm) | Longitude | ≥1000 | 1980 | GB/T3923.1-1997 |
| Latitude | ≥1000 | 1480 |
Tear strength (N) | Longitude | ≥40 | 163 | GB/T3917.3-1997 |
| Latitude | ≥35 | 77 |
| Flame resistance | longitude | Longitude | ≤15 | 0.2 | GB/T5455-1997 |
| Latitude | 0.2 |
| Afterglow time(S) | Longitude | ≤15 | 0.0 |
| Latitude | 0.0 |
| Damaged length(mm) | Longitude | ≤150 | 102 | |
| Latitude | 118 |
| Meltdown cast | Non-tolerance to burn of absorbent cotton or flame resistance | Not give rise to burn of absorbent cotton or smoldering | |
*Above test report is DERFLEX DG1122 based on 650gsm PVC coated Tarps.
Application:
PVC coated tarparlin is not only widely used in Tent, truck cover, wedding tent, waterproof warehouse, parking garage
But also Widely used in minig ventilation system, oil booms, container bags and other building construction industrial etc.
DERFLEX Tarpaulin Features:
1. Laminated technology & Hot-melt Coating & Knife coating technology
2. Outstanding tearing strength for welding
3. Flame retardant character (optional),B1 ;M1,
4. Temperature resistance: -20--70
5. Cold Crack Resistance, Anti-Mildew, Anti-Static treatment, Waterproof
6. Anti ultraviolet treatment(UV).(optional)
7. Acrylic treatment (optional).
Any products meet your demands, ple feel free to contact us.
>>
