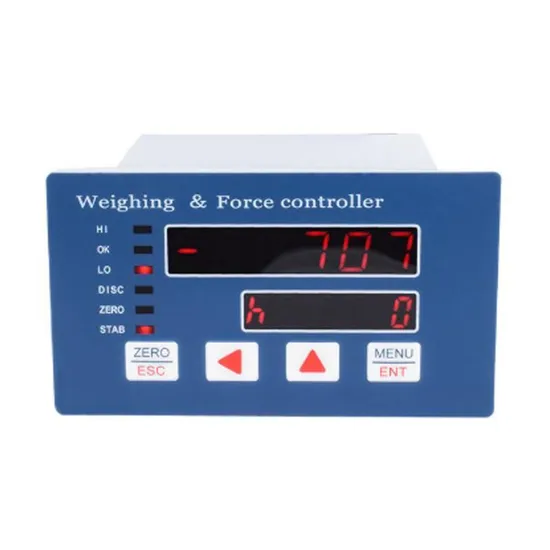

RS485 Load Cell Weight Controller with Relay Output

US$120.00
1-9 Pieces
US$115.00
10+ Pieces

Basic Info.

Model NO.
FA05
Out-Wire
4-Wire
Output Signal Type
Digital Type
Feature
Low Temperature Resistant
Production Process
Integration
Material
Stainless Steel
IP Rating
IP65
Certification
CE
Customized
Customized
Display Window
Double-Row LED Display
Readability
1/90000
Protection Class
IP65
Operating Temp Range
-20~70°c
Transport Package
Cartons, Sponges, Wooden Box Pallets
Specification
25*18*7cm
Trademark
Fibos
Origin
China
HS Code
9031809090
Production Capacity
1000PCS/Month

Packaging & Delivery

Package Size
26.00cm * 17.00cm * 8.00cm
Package Gross Weight
2.000kg

Product Description

Product Description
Features:
Load cell display controller
Load cell display indicator
4-20mA
RS485 communication
Relay output
Please contact Estee for products details and catalog→
Specifications Technique
Display LED
Readability 1/90000
Output linear <0.002%
Comprehensive accuracy 0.01%
A/D Conversion speed ≤1600
Accept sensor -3.6~+3.6 m V/V
Input load 1~8pcs350Ωload cells
Output specification ±10V / 0~10V / 4~20mA
Temp.effect on output ≤10ppm /ºC
Temp.effect on zero ≤10μV /ºC
Excitation voltage 5VDC
Power supply 24±5VDC
Power waste ≤8W
Operation temp range -20~70ºC
Weight approx. 0.5kg
Material Aluminum alloy
IP Class IP65
The core team of Fibos has 20 years of experience in the design and production of advanced sensors in Germany. We continuously develop and produce: precision micro and small force sensors, dynamic and static torque sensors, six-dimensional force, three-dimensional force, multi-dimensional force sensors, load cells, custom ring force sensors, thread force sensors, thread preload force sensors, sensors for robots, tension series and various non-standard force sensors, etc. The company produces pressure force sensors: accurate measurement, low height, small deformation, high precision, good stability, fast response, easy installation, long life, complete specifications and sizes, not only for push and pull meters, hopper scales, a variety of industrial weighing systems, automotive press assembly, automated assembly, 3C product testing; also used in new energy product assembly, medical testing, textiles, robotics, mold assembly, wind energy, nuclear power and ships, etc. The product dynamic response frequency is high, also can accept custom specifications. In the application of high-frequency loud, fatigue strength after the test, life use up to 100 million times, suitable for all kinds of aircraft, automotive testing occasions.
